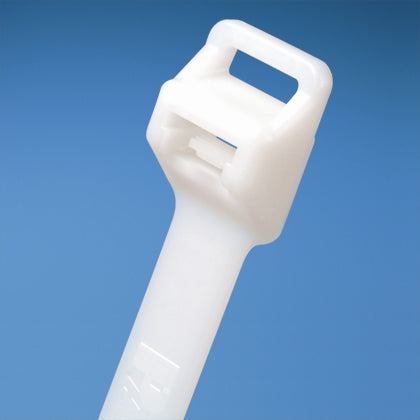

Panduit PLT12EH-C | Pan-Ty® Locking Cable Tie
Description
Description
Panduit Pan-Ty Lashing Cable Tie, Extra Heavy, Series: PLT, 40.1 in Length, 0.8 in Width, 0.09 in Thickness, 12 in Diameter Bundle, Lock Mechanism: Locking, 250 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit PLT12EH-C Lashing Cable Ties are ideal for heavy duty applications. Extra-Heavy cross section, 40.1 (1019mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit - PLT12EH-C - Features
- 1-piece construction for consistent performance and reliability
- Low thread force
- Greater resistance to damage caused by ultraviolet light
- Can be used with MCEH mounting clip
Specifications
Specifications
Panduit - PLT12EH-C - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL 62275 Compliant (Type 2, 21), CSA Certified, RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 40.1 |
| Overall Length (mm) | 1019 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Body Thickness (In.) | 0.085 |
| Body Thickness (mm) | 2.2 |
| Maximum Bundle Diameter (In.) | 12 |
| Maximum Bundle Diameter (mm) | 304.8 |
| Minimum Bundle Diameter (In.) | 2.5 |
| Minimum Bundle Diameter (mm) | 63.5 |
| Minimum Loop Tensile Strength (N) | 1112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354273 |
Panduit - PLT12EH-C - Package Information
| UPC | 07498354273 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.5667 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 2.8336 |
Panduit - PLT12EH-C - Videos
| Panduit PLT12EH-C Videos | Click to View |
|---|
