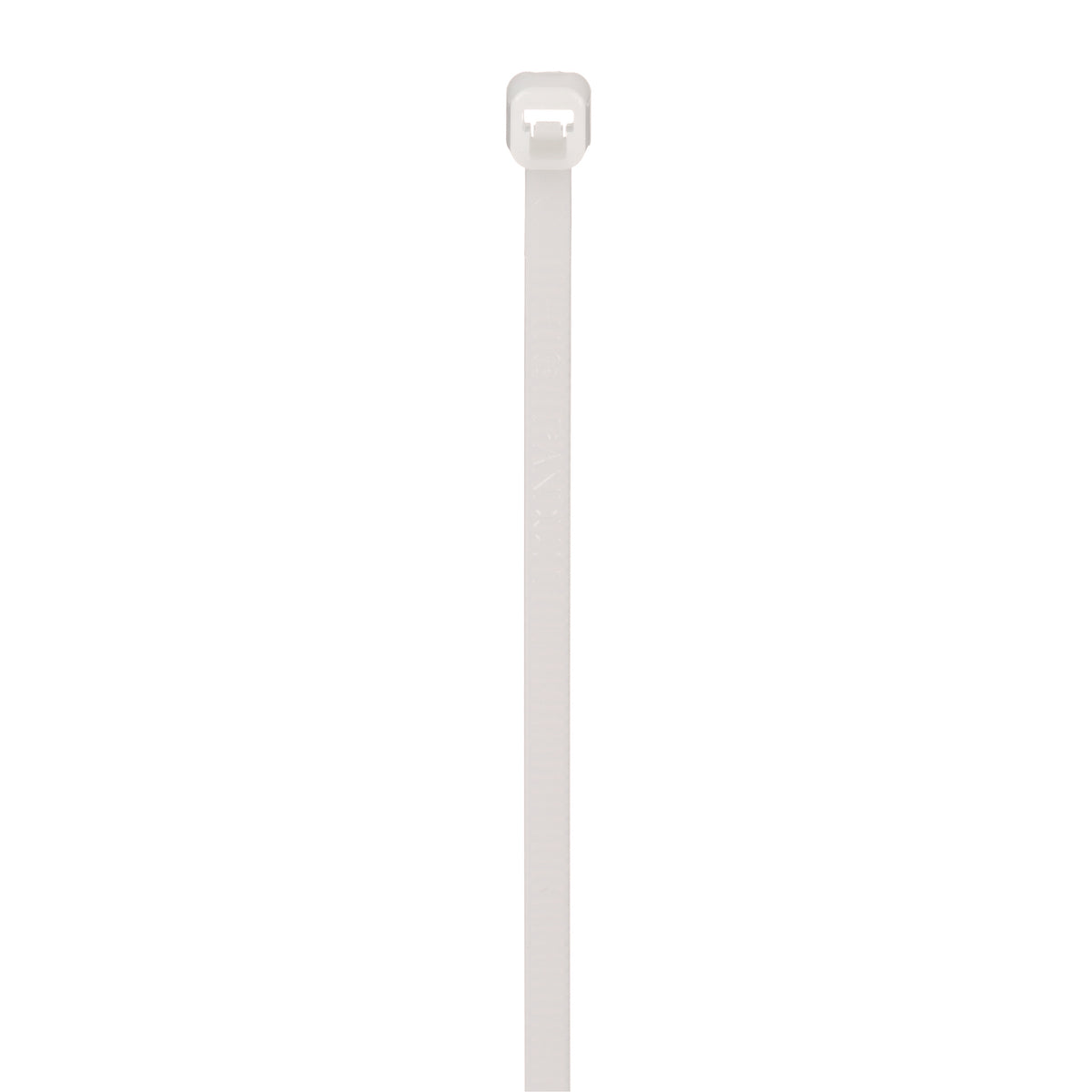

Panduit PLT1M-XMR | Reel-Fed Cable Tie, Natural, PA 6.6, PK5000, 4"L, 18 lbs
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT1M-XMR | Reel-Fed Cable Tie, Natural, PA 6.6, PK5000, 4&...
Description
Description
Boost productivity with our reel-fed cable tie. Perfect for high-efficiency setups, it reduces downtime and provide reliable, weather-resistant performance.
Productivity is critical when it comes to high volume harnessing, assembly, fastening and packaging applications. to remain competitive, manufacturers are faced with the constant struggle to increase throughput, reduce lead times and meet customer expectations. the Panduit PAT 4.0 automatic cable tie installation system addresses these challenges by introducing a series of next generation features and functionality to transform wire bundling and assembly as you know it.
Panduit Pan-Ty Miniature Cable Tie, Cross Section Reel Fed, 4 in Length, 0.1 in W, 0.04 in Thickness, 0.82 in Bundle Dia, Lock Mechanism: Locking, 18 lb Tensile, -70 to 185 deg F, Nylon 6.6, Natural
Panduit - PLT1M-XMR - Features
- One piece locking wedge provides consistent, reliable performance
- Low threading force reduces operator fatigue and improves productivity
- High loop tensile strength exceeds industry standards
- Curved tip threads easily and installs faster
- Finger grip ensures positive grip during threading of tie
Specifications
Specifications
Panduit - PLT1M-XMR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT1M-XMR |
| Product Type | Reel-Fed Cable Tie |
| Color | Natural |
| Environment | Indoor |
| For Use With | PAT1M4.0 System |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.1 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Maximum Bundle Diameter (In.) | 0.82 |
| Maximum Bundle Diameter (mm) | 20.8 |
| Minimum Bundle Diameter (In.) | 0.02 |
| Minimum Bundle Diameter (mm) | 0.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354716 |
Panduit - PLT1M-XMR - Videos
| Panduit PLT1M-XMR Video 1 | Click to View |
|---|
