Brand: Panduit
|
SKU:
10331958

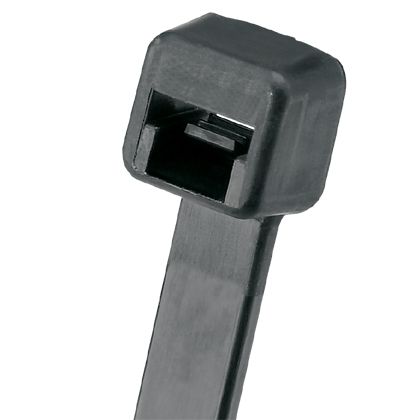

Panduit PLT2.5S-M30 | Pan-Ty PLT2.5S-M30 Cable Tie, Black, High Heat PA6.6, 9.8"L, 50lb, PK1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLT2.5S-M30 | Pan-Ty PLT2.5S-M30 Cable Tie, Black, High Hea...
Regular price
$1.46
Unit price
Description
Description
Panduit PLT2.5S-M30 | Pan-Ty PLT2.5S-M30 Cable Tie, Black, High Heat PA6.6, 9.8"L, 50lb, PK1000
Panduit PLT2.5S-M30 Locking Cable Ties are designed to satisfy the needs of high temperature applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 9.8" (249mm) length. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.
Panduit - PLT2.5S-M30 - Features
- Technical Info: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint
Specifications
Specifications
Panduit - PLT2.5S-M30 - Product Categories
- Hardware
- Hardware
- Hardware
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - PLT2.5S-M30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLT2.5S-M30 |
| Item Description | Pan-Ty PLT2.5S-M30 Cable Tie, Black, High Heat PA6.6, 9.8"L, 50lb, PK1000 |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Resistance Properties | Heat Resistant |
| Overall Length (In.) | 9.8 |
| Overall Length (mm) | 249 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 2.5 |
| Maximum Bundle Diameter (mm) | 63.5 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Compliant |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Part Features | One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. |
| UNSPSC Code | 39121703 |
Panduit - PLT2.5S-M30 - Package Information
| UPC | 07498353603 |
|---|---|
| Std. Pkg. Qty. | 1000 |
| Std. Pkg. Volume (cf) | 0.3267 |
| Std. Ctn. Qty. | 10000 |
| Std. Ctn. Volume (cf) | 3.2668 |
