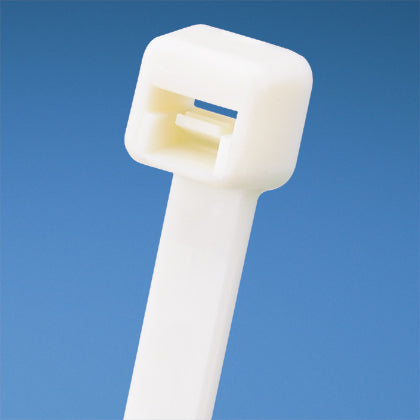

Panduit PLT2M-M69 | Cable Tie | UPC - 07498338560
Description
Description
Pan-Ty metal detectable cable ties and mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. Featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Panduit metal detectable products help companies comply with the U.S. Food and Drug Administration HACCP standards and the European Union (EU) hygiene monitoring regulations. Additionally, the distinct blue color facilitates quick visual detection. Metal detectable cable ties and mounts are available in either nylon material for general purpose applications or polypropylene material which provides superior resistance to harsh cleaning chemicals. The GT series of tools captures the cut-off tips of ties to help further prevent process stream contamination. The Pan-Ty metal detectable cable ties, cable tie mounts and installation tools deliver a complete bundling solution to help reduce product contamination and loss.
Panduit Pan-Ty Miniature Cable Tie, Series: PLT, 8 in Length, 0.1 in Width, 0.04 in Thickness, 2 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -76 to 212 deg F, Nylon 6.6, Ivory
Features + Benefits
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
Panduit PLT2M-M69 | Cable Tie | UPC - 07498338560 Key Specs
| Product Type | Cable Tie |
| Color | Natural Ivory |
| Environment | Plenum |
| Sub Brand | Pan-Ty |
| For Use With | GTS-E, GS2B-E, PTS |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 100 |
| Maximum Operating Temperature (°F) | 212 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
Panduit PLT2M-M69 | Cable Tie | UPC - 07498338560 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PLT2M-M69 Product Page | Download and View |
| Part Drawings | Pan-Ty Cable Ties Flame Retardant Series: SS-18977 | Download and View |
| Part Drawings | PLT2M Cable Tie: STP File | Download and View |
Panduit PLT2M-M69 | Cable Tie | UPC - 07498338560 Environmental Information
| Panduit's RoHS Statement | Download and View |
