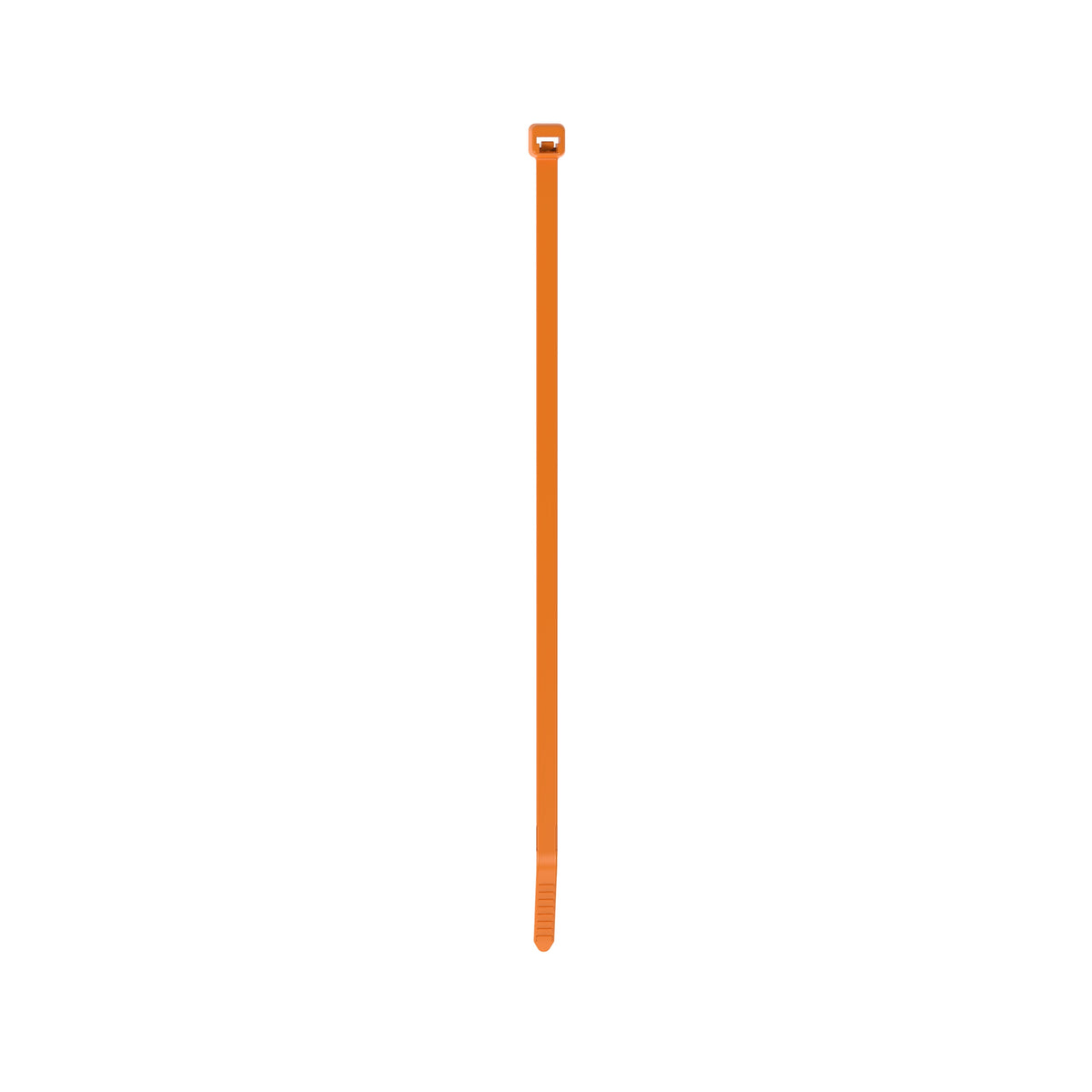

Panduit PLT2S-M3 | Pan-Ty® Locking Cable Tie
Description
Description
Panduit Pan-Ty Cable Tie, Plenum Rated Standard, Series: PLT, 7.4 in Length, 0.19 in Width, 0.05 in Thickness, 1.88 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Orange
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit PLT2S-M3 Locking Cable Ties are designed to satisfy the needs of mil spec applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. S tandard cross section, 7.4" (188mm) length. Made of Nylon 6.6, are orange in color and come in packages of 1000.
Panduit - PLT2S-M3 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - PLT2S-M3 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Premium Cable Tie |
| Color | Orange |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 1.88 |
| Maximum Bundle Diameter (mm) | 47.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| UPC | 07498354919 |
Panduit - PLT2S-M3 - Package Information
| UPC | 07498354919 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.2164 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.1638 |
Panduit - PLT2S-M3 - Videos
| Panduit PLT2S-M3 Videos | Click to View |
|---|
