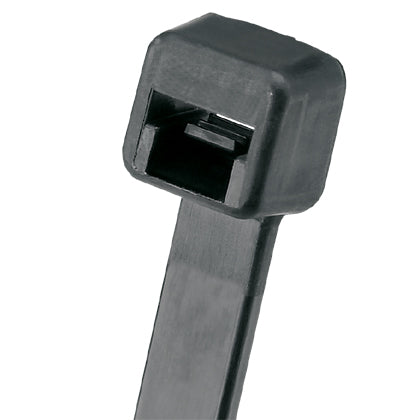

Panduit PLT3S-C00 | Pan-Ty® Locking Cable Tie
Description
Description
Panduit Pan-Ty Cable Tie, Standard Cross Section, Series: PLT Series, 11-1/2 in Length, 0.19 in Width, 0.05 in Thickness, 3 in Diameter Bundle, Lock Mechanism: Locking, 50 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Black
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit PLT3S-C00 Locking Cable Ties are designed to satisfy the needs of Weather-resistant mil spec applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster i nitial threading. Standard cross section, 11.5" (292mm) length. Made of Military Spec Weather-resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Panduit - PLT3S-C00 - Features
- 100% performance tested
- Documented metrics
- Lifetime traceability
- Metallic continuity element
- 1-piece construction for consistent performance and reliability
- Lowest threading force of any 1-piece cable tie in the industry
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
- Weather resistant nylon 6.6
Specifications
Specifications
Panduit - PLT3S-C00 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2S, 21S), RoHS Complaint |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498354132 |
Panduit - PLT3S-C00 - Package Information
| UPC | 07498354132 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0556 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.5563 |
Panduit - PLT3S-C00 - Videos
| Panduit PLT3S-C00 Videos | Click to View |
|---|
