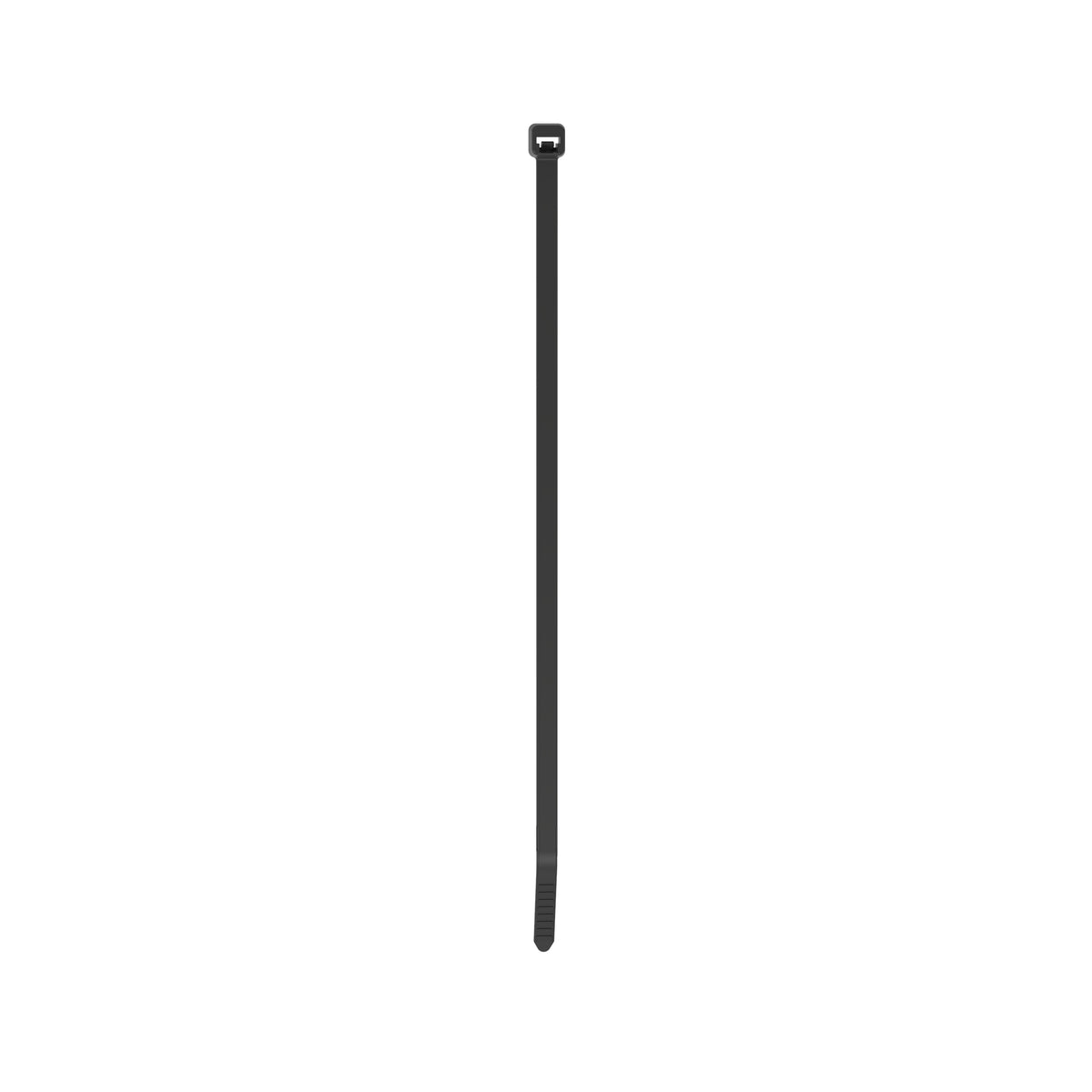

Panduit PLT3S-M300 | Pan-Ty® Locking Cable Tie
Description
Description
Panduit Pan-Ty Cable Tie, Standard Cross Section, 11-1/2 in Length, 0.34 in Width, 0.06 in Thickness, 0.06 to 3 in Bundle Dia, 222.41 N Tensile, -76 to 239 deg F, Nylon 6.6, Black
Organize your cables efficiently with our standard locking cable tie. This cable tie has a curved tip for easy threading and a nylon material that resists weather.
Panduit PLT3S-M300 Locking Cable Ties are designed to satisfy the needs of high temperature and weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 11.5" (292mm) length. Made of Heat Stabilized Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.
Panduit - PLT3S-M300 - Features
- Ball valves regulating hydraulic, pneumatic and chemical energy can be locked out quickly and easily
- Constructed of rugged polypropylene providing strength, durability and added security
- Accommodates most butterfly valve handles
- UV resistant
- For use with GTS-E/GS2B-E/GTH-E/GS4H-E/PTS and PTH cable tie tool
- 3 in enclosure
Specifications
Specifications
Panduit - PLT3S-M300 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL62275 Compliant (Type 2, 21) Type 2 only, UL Listed (File #E56854), CSA Certified, RoHS Complaint |
| Material Description | Nylon 6.6 (Heat-Resistant, UV-Resistant, Weather-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Resistance Properties | Heat-Resistant, UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 11.5 |
| Overall Length (mm) | 292 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| UPC | 61305668584 |
Panduit - PLT3S-M300 - Package Information
| UPC | 61305668584 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.3420 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 3.4202 |
