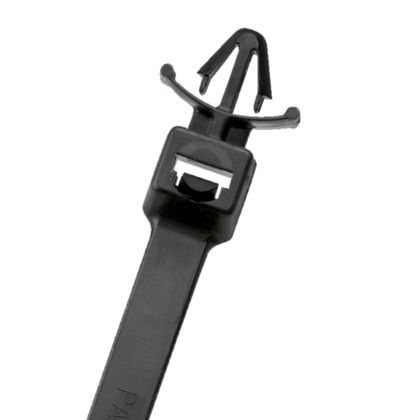

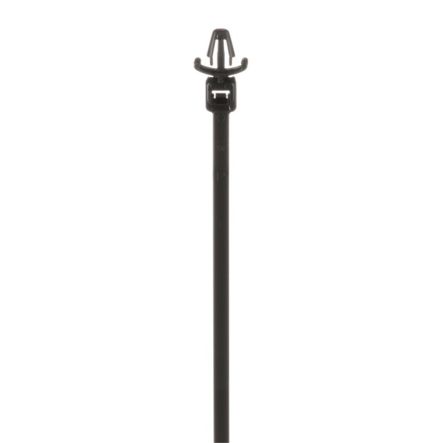

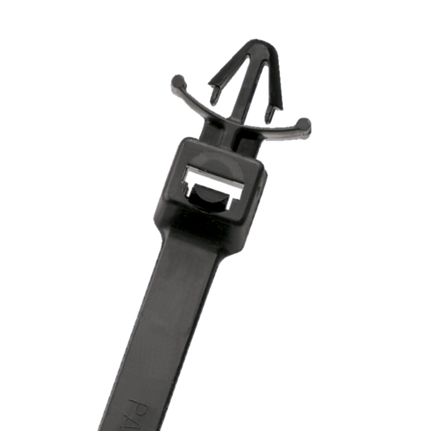

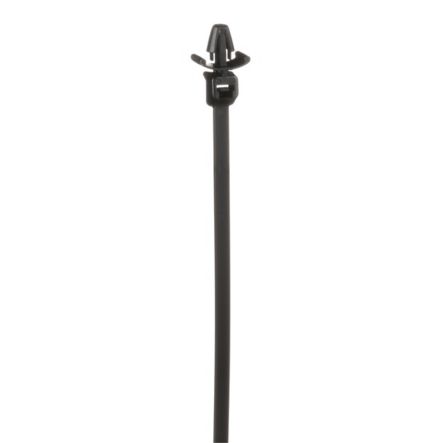

Panduit PLWP1.5I-D30 | Pan-Ty Wing Push Mount Tie, Black, High Heat PA6.6, 6"L, 40lb
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PLWP1.5I-D30 | Pan-Ty Wing Push Mount Tie, Black, High Heat...
Description
Description
No more loose or rattling cables with our locking wing mount push tie. This tie locks into place in any hole and provides a secure, stable connection while handling UV exposure and heat.
Panduit Pan-Ty Cable Tie, Heat Stabilized Intermediate Wing Push Mount, Series: PLWP, 6 in Length, 0.14 in Width, 0.05 in Thickness, 1-1/4 in Diameter Bundle, Lock Mechanism: Locking, 40 lb Tensile Strength, -76 to 239 deg F, Nylon 6.6, Black
Panduit - PLWP1.5I-D30 - Features
- Cable tie, mount and fastener in a single part
- Used to attach bundles to another surface such as a flat panel
- Anchor is easily pressed into a pre-formed hole and locks in place
- Wings provide constant tension for a stable, secure and rattle-free installation
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Weather-resistant material has greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - PLWP1.5I-D30 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PLWP1.5I-D30 |
| Material Description | Nylon 6.6 (Heat-Resistant) |
| Product Type | Premium Cable Tie |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Resistance Properties | Heat-Resistant |
| Overall Length (In.) | 6 |
| Overall Length (mm) | 152 |
| Body Width (In.) | 0.135 |
| Body Width (mm) | 3.4 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 31.8 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| UPC | 07498322413 |
