Panduit PLWP2S-C | Cable Tie | UPC - 07498354311
Regular price
$48.01
Unit price
Brand: Panduit
|
SKU:
9873621
Regular price
$48.01
Unit price
Description
Description

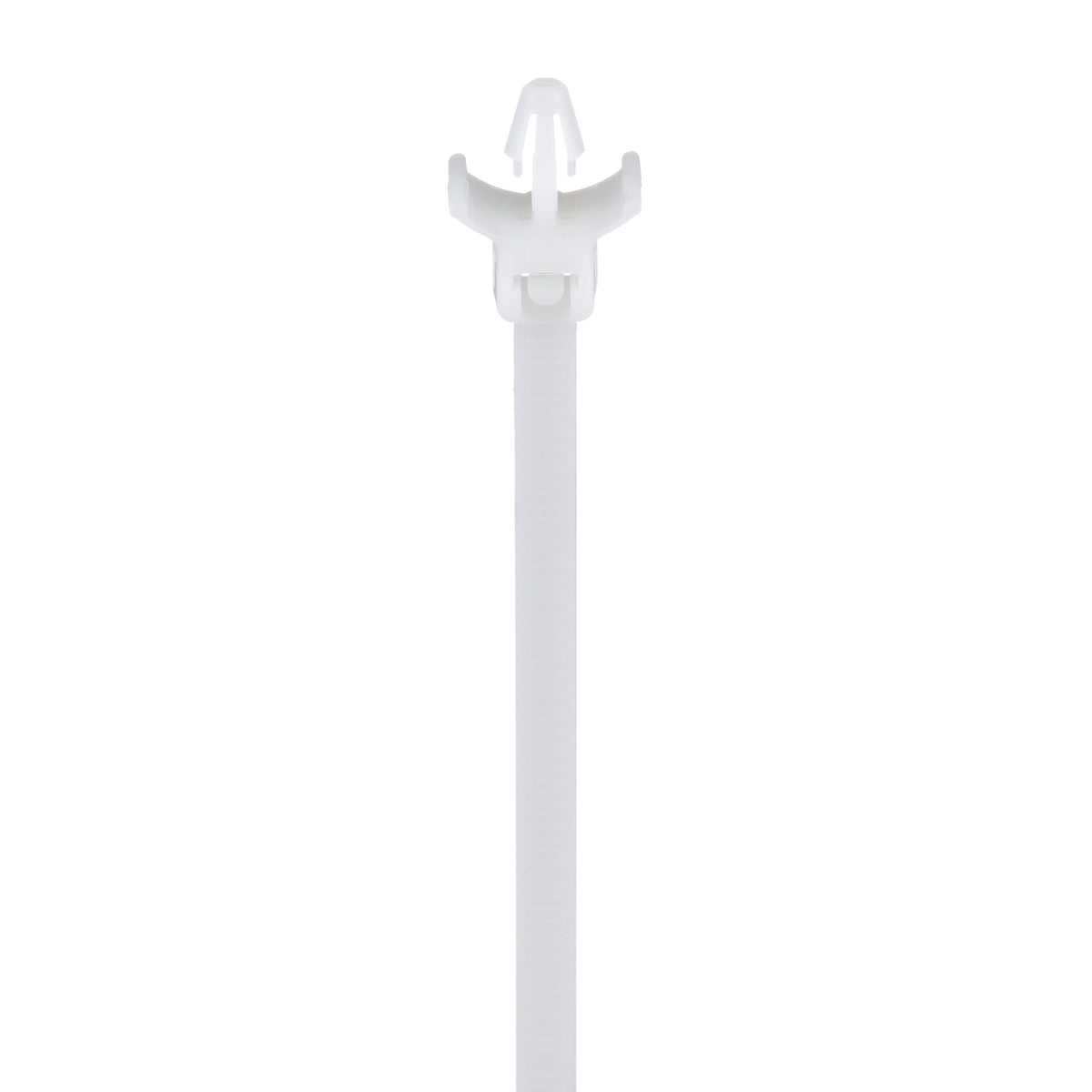

Panduit Pan-Ty Cable Tie, Standard, Series: PLWP, 7.8 in Length, 0.19 in Width, 0.05 in Thickness, 1-3/4 in Diameter Bundle, Lock Mechanism: Locking, 50 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural
Features + Benefits
- Cable tie, mount and fastener in a single part
- Used to attach bundles to another surface such as a flat panel
- Anchor is easily pressed into a pre-formed hole and locks in place
- Wings provide constant tension for a stable, secure and rattle-free installation
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Panduit PLWP2S-C Key Specs
| Product Type | Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Sub Brand | Pan-Ty |
| For Use With | GTS, GTSL, GS2B, GTH, GS4H, PTS, PTH, PPTS, STS2, STH2 |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 1.75 |
| Maximum Bundle Diameter (mm) | 44.4 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 7.8 |
| Overall Length (mm) | 198 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Standards Met | UL Recognized (File #E56854), RoHS Complaint |
Panduit PLWP2S-C Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PLWP1M-C Product Page | Download and View |
| Part Drawings | Locking Wing Push Mount Tie: SS-17564 | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
