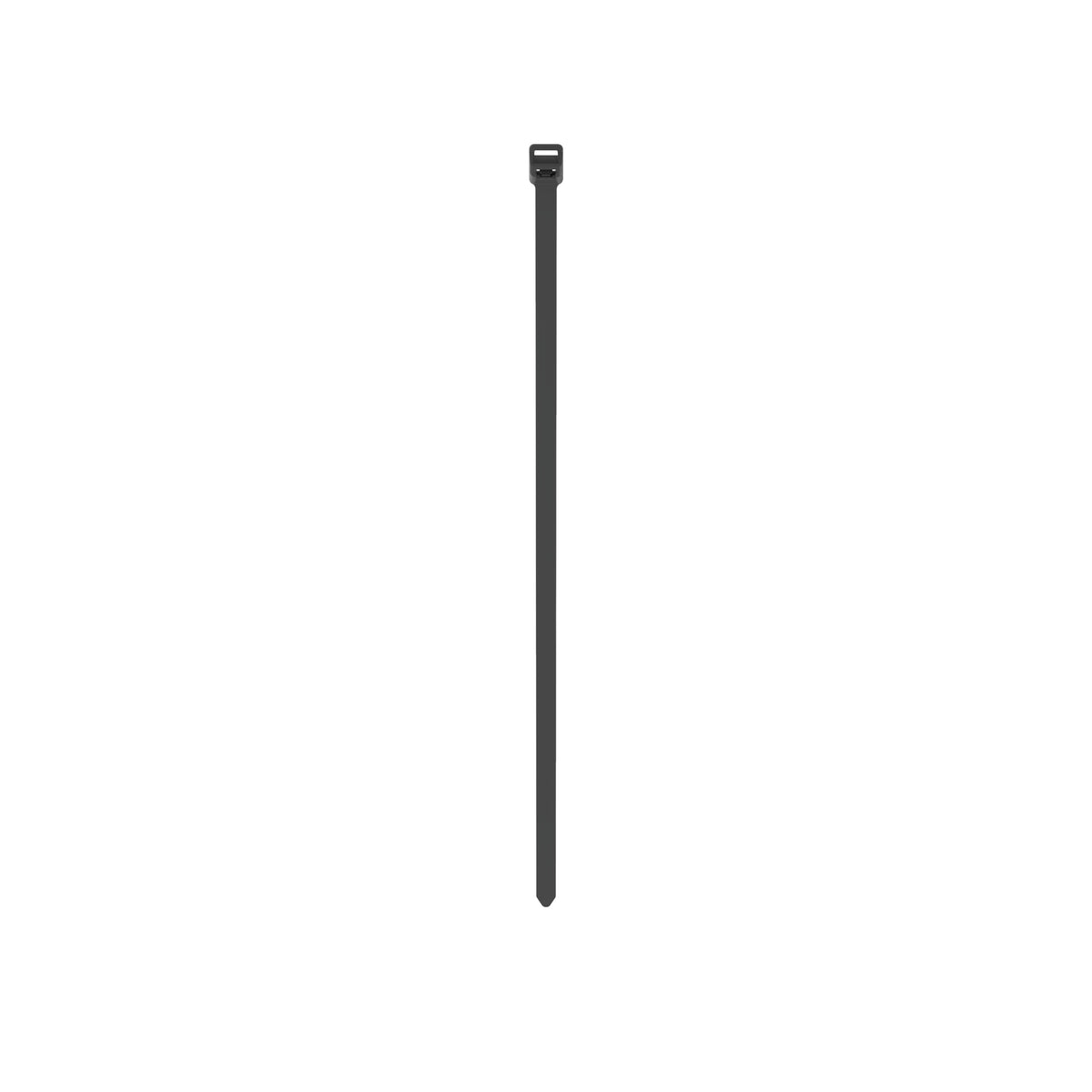

Panduit PRT5EH-Q0 | Cable Tie | UPC - 07498354204
Regular price
$4.06
Unit price
Brand: Panduit
|
SKU:
9772513
Regular price
$4.06
Unit price
Description
Description
Panduit Pan-Ty Lashing Tie, Extra Heavy, Series: PRT, 20.1 in Length, 1/2 in Width, 0.08 in Thickness, 5 in Diameter Bundle, Lock Mechanism: Releasable, 250 lb Tensile Strength, -76 to 185 deg F, Nylon 6.6, Black
Features + Benefits
- Release tab permits easy release and re-use where changes are anticipated during development, production or servicing in the field
- 1-piece construction for consistent performance and reliability
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- For chemical resistance where high loop tensile strength is not required
- Greater resistance to damage caused by ultraviolet light
- UV-resistant
Panduit PRT5EH-Q0 Key Specs
| Product Type | Cable Tie |
| Color | Black |
| Environment | Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS and CE Compliant |
| Resistance Properties | UV Resistant |
| For Use With | Hand Install Only |
| Maximum Bundle Diameter (In.) | 5 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Installation Temperature (°C) | -20 |
| Sub Brand | Pan-Ty |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 1.112 |
| Minimum Loop Tensile Strength (lb) | 250 |
| Overall Length (In.) | 20.1 |
| Overall Length (mm) | 511 |
| Body Width (In.) | 0.5 |
| Body Width (mm) | 12.7 |
| Part Features | Release tab permits easy release and re-use where changes are anticipated. Used for heavy duty applications. |
Panduit PRT5EH-Q0 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PRT2EH-QO Product Page | Download and View |
| Part Drawings | Cable Tie Extra Heavy Nylon 6.6 | Download and View |
| Videos | Premium Cable Ties | Download and View |
| Selection Guides | Cable Ties Product Selection Guide. | Download and View |
