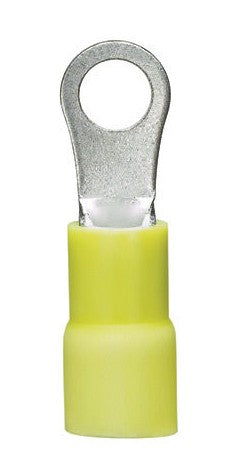

Panduit PV10-6RX-D | Pan-Term Vinyl Expanded Insulation Ring Terminal
Regular price
$1.26
Unit price
Brand: Panduit
|
SKU:
10137191-EA
Regular price
$1.26
Unit price
Description
Description
Panduit PV10-6RX-D | Pan-Term Vinyl Expanded Insulation Ring Terminal
Our expanded ring terminal easily handles thicker wires due to its wider opening, providing secure, insulated connections for demanding electrical applications.
Specifications
Specifications
Panduit - PV10-6RX-D - Specifications
| Stud Hole Size (In.) | #6 |
|---|---|
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Vinyl |
| Copper Conductor Size | 12-10 AWG |
| Wire Size | 12-10 AWG |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 300 |
| Maximum Voltage (kV) | 0.3 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Length (In.) | 0.55 |
| Barrel Length (mm) | 14 |
| CSA Temperature Rating (°C) | 75 |
