Our fork terminal design ensures consistent quality and protects wires during installation for a reliable, long-lasting connection.

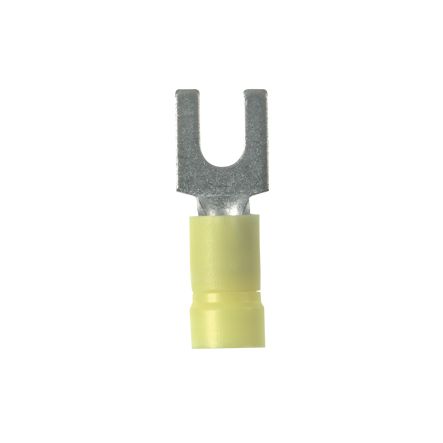

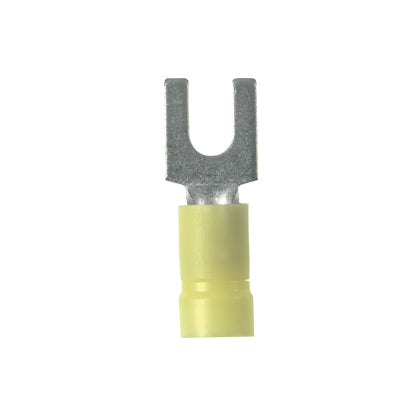

The PV10-8F-L Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-F, Stranded Copper Conductor, 14 to 10 AWG Conductor, #8 Stud, 1.04 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.225 in Dia Vinyl Insulation, 1/4 in Clearance, 221 deg F, Copper, Tin Plated, Yellow
Panduit - PV10-8F-L - Features
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV10-8F-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV10-8F-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Fork Type | Standard |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG SOL) | #14 |
| Minimum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 7.9 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380412 |
