Brand: Panduit
|
SKU:
PAN-PV18-8RB-3K
Panduit PV18-8RB-3K | Reel Smart PV18-8RB-3K Ring Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK3000
Regular price
$1,071.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PV18-8RB-3K | Reel Smart PV18-8RB-3K Ring Terminal, Red, Vi...
Regular price
$1,071.64
Unit price
Brand: Panduit
|
SKU:
PAN-PV18-8RB-3K
Regular price
$1,071.64
Unit price
Shipping calculated at checkout.
Description
Description

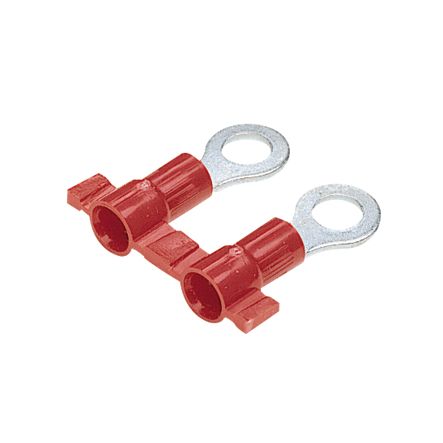

Panduit PV18-8RB-3K | Reel Smart PV18-8RB-3K Ring Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK3000
The PV18-8RB-3K Reel Smart Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - PV18-8RB-3K - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Maximum insulation temperature 221F (105C)
- UL and CSA rated up 600 V per UL 486
Specifications
Specifications
Panduit - PV18-8RB-3K - Product Categories
- Wire Termination
- Ring Terminals
Panduit - PV18-8RB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PV18-8RB-3K |
| Item Description | Reel Smart PV18-8RB-3K Ring Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK3000 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.4 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Sub Brand | Reel Smart |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.8 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Product Type | Ring Terminal |
| For Use With | Crimp press with CA9 (CD9-1A) or CA-800EZ (CD-800-1) applicator |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications |
Panduit - PV18-8RB-3K - Package Information
| UPC | 07498380350 |
|---|---|
| Standard Package Quantity | 3000 |
| Standard Package Volume (cf) | 0.9208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - PV18-8RB-3K - Videos
| Video 1 | Click to View |
|---|
