Brand: Panduit
|
SKU:
991341
Panduit PW50FR-TY | Split Harness Wrap | UPC - 07498310777
Regular price
$387.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit PW50FR-TY | Split Harness Wrap | UPC - 07498310777
Regular price
$387.82
Unit price
Description
Description

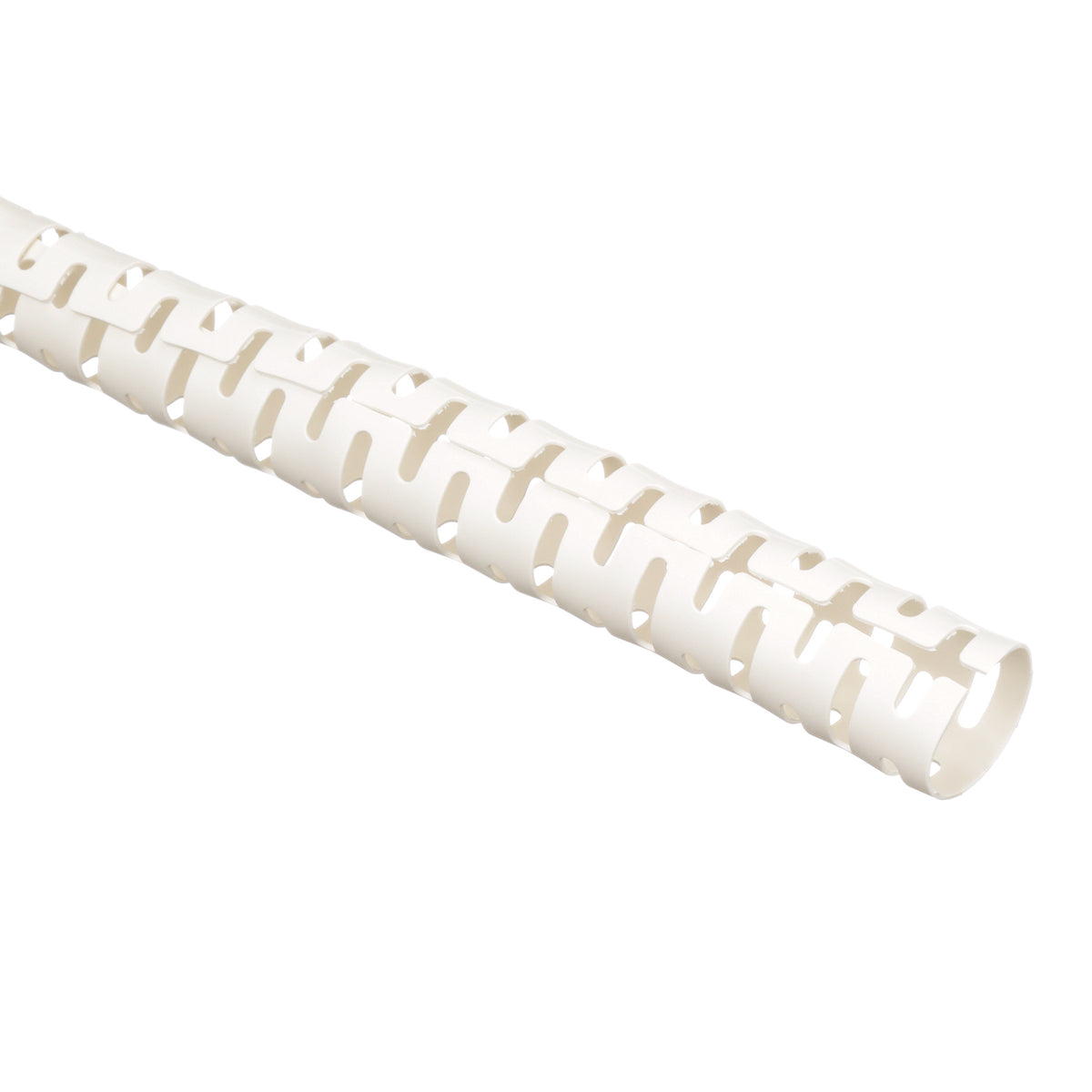

Panduit Pan-Wrap Split Harness Wrap, 1/2 in OD Dia, 200 ft Length, 0.55 in Maximum Bundle Dia, 0.43 in Minimum Bundle Dia, -4 to 122 deg F, Polyethylene, Natural
Features + Benefits
- Patented slot pattern provides improved flexibility and abrasion protection in any application
- Unique wall design provides for easy cable breakouts
- Innovative design maintains uniform bundle protection in dynamic application
- Considerably reduces installation time
- Large overlap accommodates a wide range of bundle diameter
- Packaged on a reel for easy handling and dispensing of product
Panduit PW50FR-TY Key Specs
| Application | Abrasion protection solution engineered for flexibility and maximum protection of wires and cables with considerably reduced installation time |
| Note | Compatible with PWT50 tool; PW50FR-TY replaces PW50FR-T |
| Product Type | Split Harness Wrap |
| Sub Brand | Pan-Wrap |
| Color | Natural |
| For Use With | PWT50 Tool |
| Material | Flame Retardant Polyethylene |
| Maximum Bundle Diameter (In.) | 0.55 |
| Minimum Bundle Diameter (In.) | 0.43 |
| Maximum Bundle Diameter (mm) | 14 |
| Minimum Bundle Diameter (mm) | 10.9 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -4 |
| Nominal Diameter (In.) | 0.5 |
| Nominal Diameter (mm) | 12.7 |
| Overall Length (ft.) | 200 |
| Overall Length (m) | 61 |
| Resistance Properties | Abrasion Resistance; Flame Retartant |
| Part Features | Patented slot pattern provides improved flexibility and abrasion protection in any application; Unique wall design provides for easy cable breakouts; Reduces installation time; Large overlap accommodates a wide range of bundle diameters |
Panduit PW50FR-TY Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PW38F-TL Product Page-1 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - PW38F-TL Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - GB2508BK A RV 00B (2) | Download and View |
| Product Bulletins | Pan-Wrap Split Harness Wrap and Tool | Download and View |
| Brochures | Smart Control Panel Solutions Brochures CPCB186-SA-ENG | Download and View |
| Technical References | Abrasion Protection Shelf Life | Download and View |
| Videos | Abrasion Protection Video | Download and View |
