Panduit PZCFK | Fan Kit Used With PZWMC, 61 CFM
Regular price
$284.81
Unit price
Brand: Panduit
|
SKU:
372717
Regular price
$284.81
Unit price
Description
Description

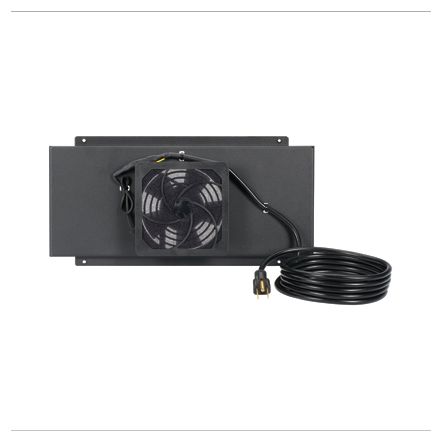

Panduit PZCFK | Fan Kit Used With PZWMC, 61 CFM
The PanZone Wall Mount Cabinet Fan Kit is used with the PZWMC* line. 61 CFM.
Panduit - PZCFK - Features
- Wall mount cabinet fan kit; kit includes one 115 V AC fan rated at 60 CFM.
- Hold 12 RU of active and passive network equipment plus two additional RU for powerstrips and small electronic devices (modems, routers, etc.)
- Structurally engineered to swing freely even under maximum load capacity
- Thermal management design (vents, perforated doors, and optional fan) optimizes air flow for improved heat dissipation; ideal for high heatload PoE enabled switch applications
- Working load rating of 250 lbs.
- Adjustable rails mount at 1"; increments to accommodate various depths of network equipment including PoE switches
- Individual rack spaces are identified for ease of equipment mounting
Specifications
Specifications
Panduit - PZCFK - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Zone Enclosure Accessories
Panduit - PZCFK - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | PZCFK |
| Item Description | Fan Kit Used With PZWMC, 61 CFM |
| Product Type | Enclosure Fan Kit |
| Overall Width (In.) | 6.94 |
| Overall Width (mm) | 176.3 |
| Overall Depth (In.) | 1.98 |
| Overall Depth (mm) | 50.3 |
| Overall Height (In.) | 14.19 |
| Overall Height (mm) | 360.4 |
| For Use With | PanZone Wall-Mount Cabinets (PZWMC**), PZC12W, PZC12S, PZC12P, PZWMC12W and PZWMC12P |
| Color | Black |
| Standards Met | Accepts 19" EIA Rack Mount Panels and Equipment, RoHS Compliant |
| Includes | (1) AC Axial Fan, (1) Fan Shroud, (1) Fan Guard, (1) 6FT Long Power Cord, with Schuko Plug, (4) #10-32 Screws, (4) #10 Split Ring Lock-Washers |
| Sub Brand | PanZone |
Panduit - PZCFK - Package Information
| UPC | 07498368261 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2711 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - PZCFK - Videos
| Video 1 | Click to View |
|---|
