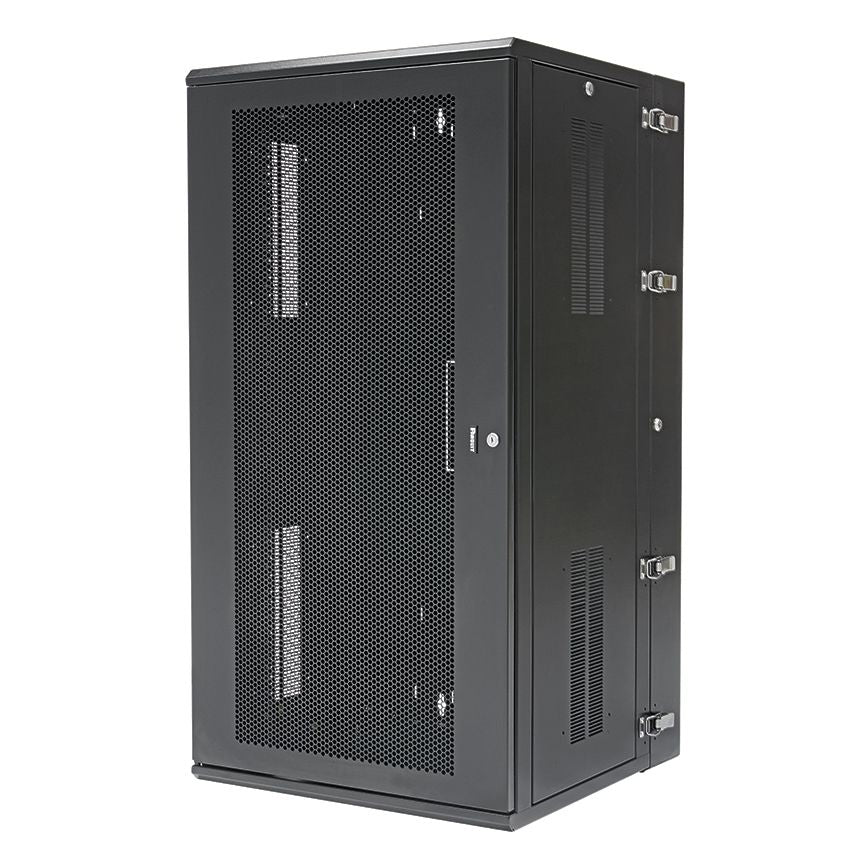

Panduit PZWMC26P | Wall Mount Cabinet | UPC - 61305661104
Regular price
$1,676.71
Unit price
Brand: Panduit
|
SKU:
9783430
Regular price
$1,676.71
Unit price
Description
Description
Panduit PanZone Cabinet, 25 in Width, 25 in D, 26RU Rack Unit, 350.09 lb Capacity, Wall Mount, Steel, Black Oxide
Features + Benefits
- Accepts 19 in EIA rack mount panels and equipment
- Structurally engineered design - allows cabinet to swing freely for easy operation even under maximum load capacity
- Thermal management system - optimizes airflow for improved heat dissipation from various switches and power supplies
- Adjustable equipment rails (0.9 in increments) - increases usable cabinet depth by accommodating various equipment including 1 RU or 2 RU PoE switches up to 26.8 in D
- The cabinet will also accommodate 2.3 in of room in the front of the cabinet for patch cords and cable management
- Rack spaces identification - allows for quick and easy location of rack spaces speeding installation of horizontal rack mount products
- Removable and locking side panels - allows for easy, secured access to installed equipment and cable routing
Panduit PZWMC26P Key Specs
| Product Type | Wall Mount Cabinet |
| Compatible Cabinet System | 19 |
| Material | Steel |
| Mount Method | Wall Mount |
| Maximum Load Capacity (kg) | 158.8 |
| Maximum Load Capacity (lb) | 350.09 |
| Number of Rack Units | 26 |
| Overall Width (In.) | 25 |
| Overall Width (mm) | 635 |
| Overall Depth (In.) | 25 |
| Overall Depth (mm) | 635 |
| Overall Height (In.) | 48.2 |
| Overall Height (mm) | 1224.3 |
| Raised Floor Depth (In.) | 25 |
| Raised Floor Depth (mm) | 635 |
| Color | Black |
| Sub Brand | PanZone |
| Standards Met | Accepts 19" EIA Rack Mount Panels and Equipment, RoHS Compliant |
Panduit PZWMC26P Data Sheets
| Part Drawings | PanZone Wall Mount Cabinet (PZWMC26P) | Download and View |
| Installation Documents | PANZONE Wall Mount Cabinet | Download and View |
| Specification Sheets | PanZone Wall Mount Cabinet | Download and View |
