Panduit S100X150VATY | S100X150VATY Self-Lam, Vinyl, White, 5000 Lb...
Description
Description

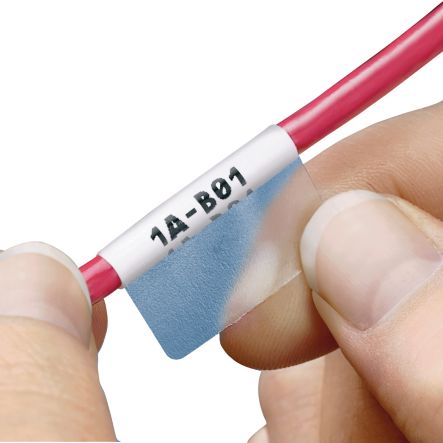

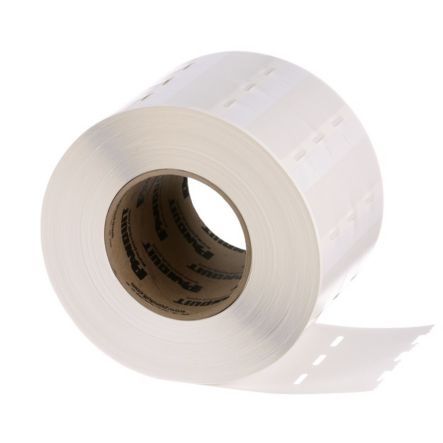

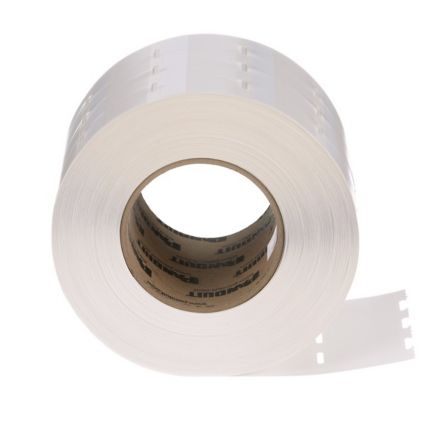

The S100X150VATY Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. Rated for use up to 150°F (65°C). 1.0" x 1.5" (25.4 x 38.1 mm) with a 3.0" (76.2 mm) core. Color White. 5000 per package.
Panduit - S100X150VATY - Features
- White print-on area, vinyl label for Cat. 5e/Cat. 6/Cat. 6A cables.
- Self-laminating adhesive labels supplied on rolls, include a colored print-on area and clear overlaminate
- Use with Panduit RMH4BL hybrid thermal transfer ribbon
Specifications
Specifications
Panduit - S100X150VATY - Product Categories
- Power, Environmental, Security & Connectivity Hardware
- Intelligent Connectivity Accessories
Panduit - S100X150VATY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X150VATY |
| Item Description | S100X150VATY Self-Lam, Vinyl, White, 5000 Lbls, TT, 1.5"x1", 0.5" PO H |
| Note | For use with TDP printers. |
| Product Type | Self-Laminating Label |
| Cable Type | Category 5e UTP;Category 6 UTP;Category 6A UTP; Category 5e FTP |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 10 – 6 |
| Maximum Cable Diameter (In.) | 0.32 |
| Maximum Cable Diameter (mm) | 8.1 |
| Minimum Cable Diameter (In.) | 0.16 |
| Minimum Cable Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5000 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 0.5 |
| Print-On Area Height (mm) | 12.7 |
Panduit - S100X150VATY - Package Information
| UPC | 07498343951 |
|---|---|
| Standard Package Quantity | 5000 |
| Standard Package Volume (cf) | 0.7051 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
