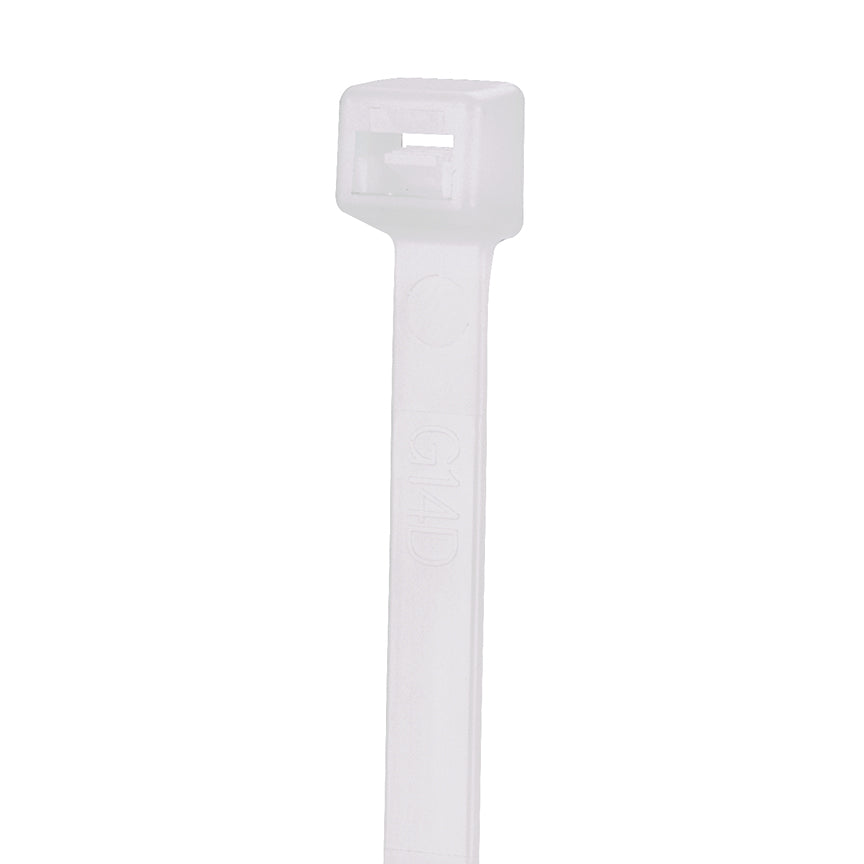

Panduit S14-120-TL | StrongHold™ Cable Tie
Description
Description
Panduit StrongHold Cable Tie, Light Heavy Plenum Rated, 14.49 in Length, 0.3 in Width, 0.06 in Thickness, 4.02 in Bundle Dia, Locking, 120 lb Tensile, -40 to 185 deg F, Nylon 6.6, Natural
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
The S14-120-TL StrongHold Cable Ties offer contrators an economical cable tie option for commercial construction and general-purpose applications. Light Heavy, 14.49" (368mm) length, made of Nylon 6.6, AH-2 Plenum rated, are black in color and come in packages of 250.
Panduit - S14-120-TL - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
Specifications
Specifications
Panduit - S14-120-TL - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | Culus Listed, CE Compliant, UL 62275 (Type 2, 21), RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Natural |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 14.5 |
| Overall Length (mm) | 368 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.6 |
| Body Thickness (In.) | 0.063 |
| Body Thickness (mm) | 1.6 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.28 |
| Minimum Bundle Diameter (mm) | 7 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| UPC | 61305625824 |
Panduit - S14-120-TL - Package Information
| UPC | 61305625824 |
|---|---|
| Standard Packaging Quantity | 250 |
| Standard Packaging Volume (cf) | 0.1981 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 1.9812 |
Panduit - S14-120-TL - Videos
| Panduit S14-120-TL Video 1 | Click to View |
|---|---|
| Panduit S14-120-TL Videos | Click to View |
