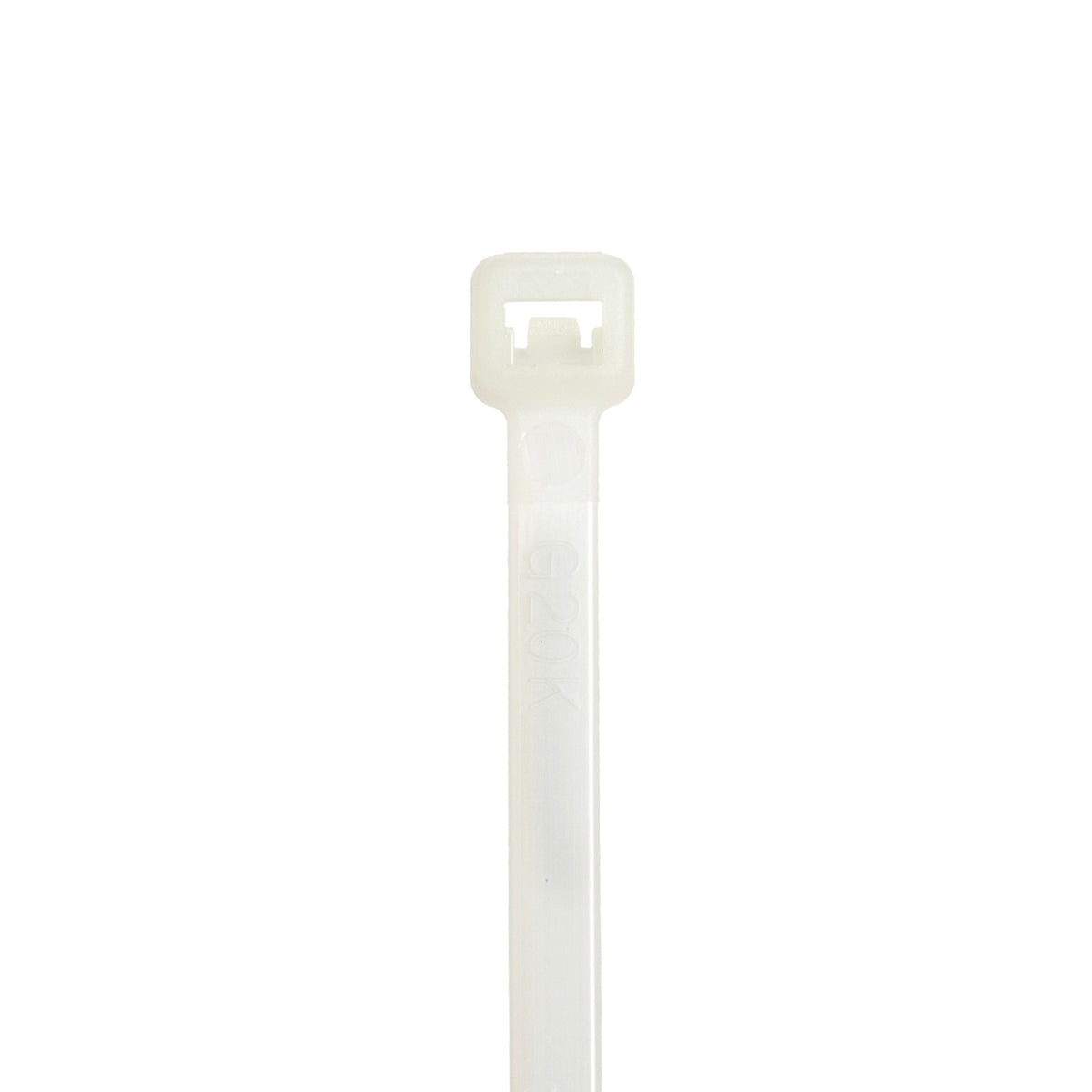

Panduit S15-50-M | StrongHold™ Cable Tie
Description
Description
Panduit StrongHold Cable Tie, Curved Tip General Purpose Contractor Plenum Standard, 14.57 in Length, 0.19 in W, 0.05 in Thickness, 4.02 in Bundle Dia, Lock Mechanism: Locking, 50 lb Tensile, -40 to 185 deg F, Nylon 6.6, Natural
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
The S15-50-M StrongHold Cable Ties offers contractors an economical cable tie option for commercial construction and general-purpose applications. Standard, 14.57 (370mm) length, made of Nylon 6.6, AH-2 Plenum rated, are natural in color and come in pa ckages of 1000.
Panduit - S15-50-M - Features
- Gate valves regulating hydraulic, pneumatic and chemical energy can be locked out quickly and easily
- Constructed of rugged polypropylene providing strength, durability and added security
- Dome-Top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread force
- UL listed for use in plenum or air handling spaces per NEC
Specifications
Specifications
Panduit - S15-50-M - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | Culus Listed, CE Compliant, UL 62275 (Type 2, 21), RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Natural |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 14.57 |
| Overall Length (mm) | 370 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.051 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.12 |
| Minimum Bundle Diameter (mm) | 3 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| UPC | 61305634066 |
Panduit - S15-50-M - Package Information
| UPC | 61305634066 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.2858 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.4289 |
Panduit - S15-50-M - Videos
| Panduit S15-50-M Video 1 | Click to View |
|---|---|
| Panduit S15-50-M Videos | Click to View |
