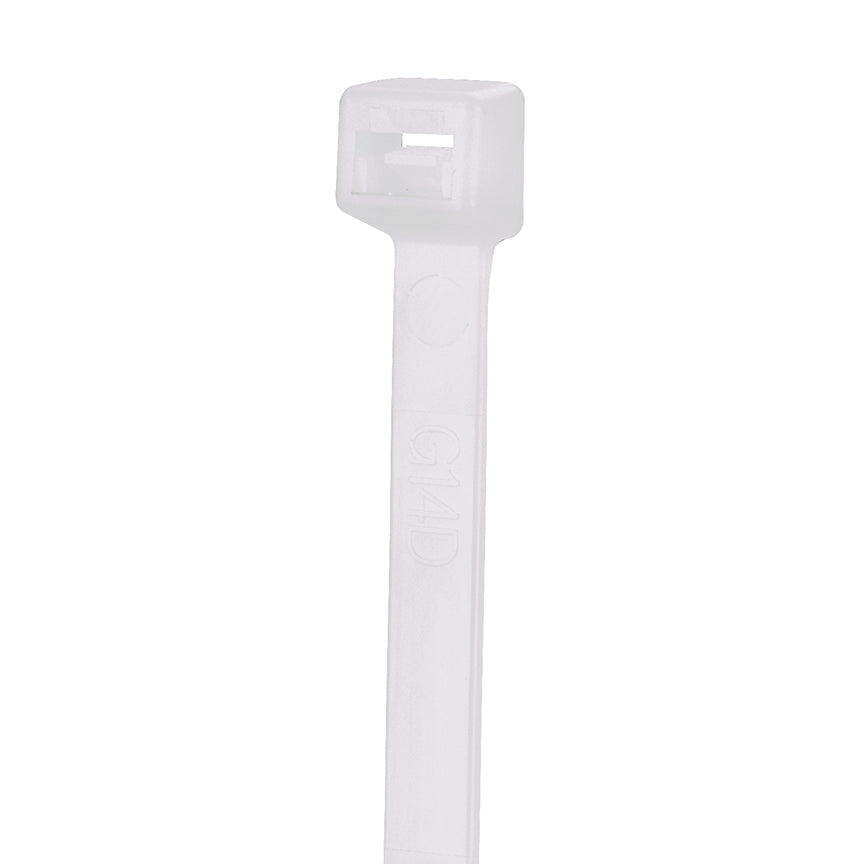

Panduit S36-175-L | StrongHold™ Cable Tie
Description
Description
Panduit StrongHold Cable Tie, Contractor Heavy, 35.91 in Length, 0.35 in Width, 0.07 in Thickness, 0.28 to 10.35 in Bundle Dia, 175 lb Tensile, -40 to 185 deg F, Nylon 6.6, Natural
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
The S36-175-L StrongHold Cable Ties offer contrators an economical cable tie option for commercial construction and general-purpose applications. Heavy, 35.91" (912mm) length, made of Nylon 6.6, AH-2 Plenum rated, are natural in color and come in packa ges of 50.
Panduit - S36-175-L - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Plenum rated AH-2 for indoor use
- Black UV weather-resistant nylon material for outdoor use
Specifications
Specifications
Panduit - S36-175-L - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | Culus Listed, CE Compliant, UL 62275 (Type 2, 21), RoHS Complaint, UL181 |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Natural |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 35.91 |
| Overall Length (mm) | 912 |
| Body Width (In.) | 0.35 |
| Body Width (mm) | 9 |
| Body Thickness (In.) | 0.071 |
| Body Thickness (mm) | 1.8 |
| Maximum Bundle Diameter (In.) | 10.3 |
| Maximum Bundle Diameter (mm) | 263 |
| Minimum Bundle Diameter (In.) | 0.28 |
| Minimum Bundle Diameter (mm) | 7 |
| Minimum Loop Tensile Strength (N) | 778 |
| Minimum Loop Tensile Strength (lb) | 175 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| UPC | 61305625876 |
Panduit - S36-175-L - Package Information
| UPC | 61305625876 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.0925 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.9248 |
Panduit - S36-175-L - Videos
| Panduit S36-175-L Video 1 | Click to View |
|---|---|
| Panduit S36-175-L Videos | Click to View |
