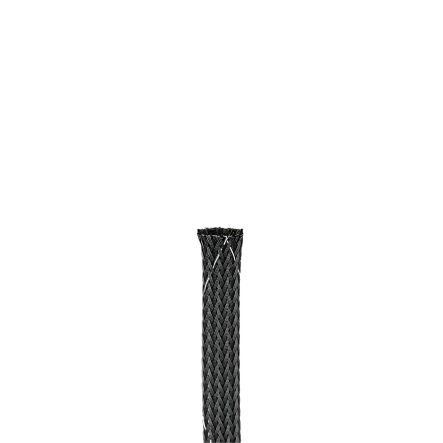

Panduit SE12PFR-TR0 | SE12PFR-TR0 Braided Sleeving, Black, FR (PET), 0.12" Nom Dia., 200', PK1
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SE12PFR-TR0 | SE12PFR-TR0 Braided Sleeving, Black, FR (PET)...
Description
Description

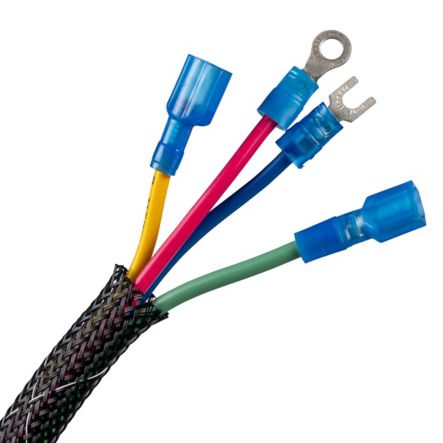

The SE12PFR-TR0 Braided Sleeving provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible. The open weave will not trap heat or humidity. Complaint with U.S. and European passenger rail standards. Temperature range: -94°F – 257°F (-70°C – 125°C). Flame-Retardent Polyethylene Terephthalate. Nominal Diameter: 0.12" (3.2 mm), 200' (61 m) long. Color Black with White thread. 1 per package.
Panduit - SE12PFR-TR0 - Features
- Provides continuous abrasion resistance for wires cables and tubing
- Lightweight durable protection
- Highly flexible open weave will not trap heat or humidity
- Rated for use up to 257F (125C)
- Allows for use with irregular shapes
- Self extinguishing meets UL VW-1
- Stock colors: Black or gray with white tracer or in white with black tracer to identify flame retardant materials.
Specifications
Specifications
Panduit - SE12PFR-TR0 - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - SE12PFR-TR0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SE12PFR-TR0 |
| Item Description | SE12PFR-TR0 Braided Sleeving, Black, FR (PET), 0.12" Nom Dia., 200', PK1 |
| Application | Provides Continuous Abrasion Protection for Wires, Cables, Hoses, and Tubing; Highly Flexible Open Weave will not Trap Heat or Humidity; Allows for Use with Irregular Shapes |
| Material | Flame Retardant Polyethylene Terephthalate (PET) |
| Flammability Rating | UL 1441 VW-1 |
| Color | Black |
| Resistance Properties | Flame-Retardant |
| Standards Met | CSA Certified, Compliant with U.S. and European passenger rail standards EN-45545, UL Recognized E116868; RoHS Compliant |
| Maximum Diameter (In.) | 0.25 |
| Maximum Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -70 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.12 |
| Nominal Diameter (mm) | 3.2 |
| Overall Length (ft.) | 200 |
| Overall Length (m) | 61 |
| Product Type | Braided Expandable Sleeving |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Minimum Bundle Diameter (In.) | 0.094 |
| Minimum Bundle Diameter (mm) | 2.4 |
| Part Features | Provides continuous abrasion protection for wires, cables, hoses and tubing. Highly flexible open weave will not trap heat or humidity, allows for irregular shapes. Lightweight and durable protection. Complaint with U.S. and European passenger rail standards. |
Panduit - SE12PFR-TR0 - Package Information
| UPC | 07498320249 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0962 |
| Standard Ctn. Quantity | 4 |
| Standard Ctn. Volume (cf) | 0.3849 |
