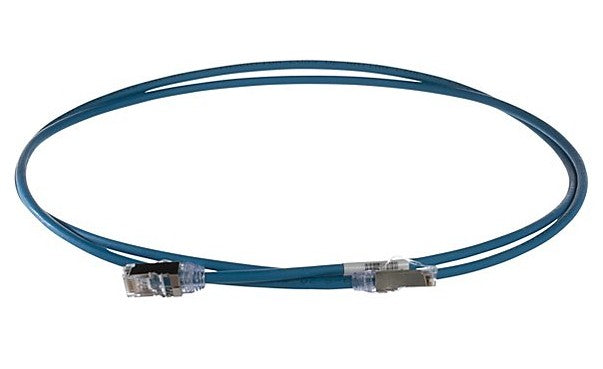

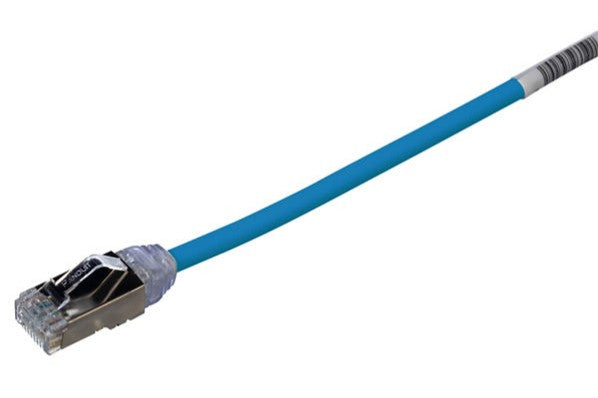

Panduit STP28X5MBU | TX6A 10Gig STP Patch Cord
Regular price
$43.05
Unit price
Brand: Panduit
|
SKU:
10716852
Regular price
$43.05
Unit price
Description
Description
Panduit STP28X5MBU | TX6A 10Gig STP Patch Cord
With an ultra-thin, shielded design, simplify your high-speed network connections with tangle-free latches. Our Cat 6A STP patch cord is perfect for your networking needs.
Specifications
Specifications
Panduit - STP28X5MBU - Specifications
| Product Type | Shielded Patch Cord |
|---|---|
| Sub Brand | Pan-Net® |
| Application | (1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing |
| Conductor Gauge | 28 AWG |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | F/UTP |
| Shield Type | Shielded (STP) |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 16.4 |
| Overall Length (m) | 5 |
| Nominal Cable Outside Diameter (In.) | 0.185 |
| Nominal Cable Outside Diameter (mm) | 4.7 |
| Wiring Scheme | RJ45/T568B |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
