Panduit STP6X17VL | Pan-Net Patch Cord
Panduit STP6X17VL | Pan-Net Patch Cord

Panduit STP6X17VL | Pan-Net Patch Cord

Part Number: MM17-PDT10GSTP-10
0 Review(s)
Write a Review
Availability:
$42.75
Retail Price:$45.63
Your Savings:$2.88(6%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit STP6X17VL | Pan-Net Patch Cord

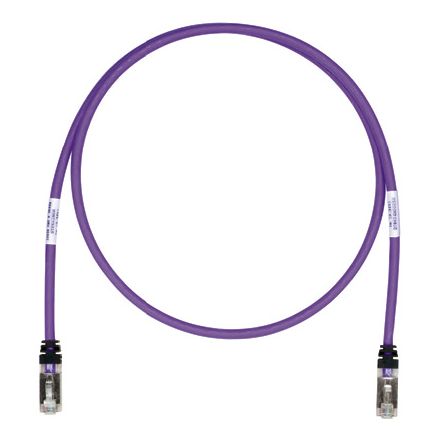

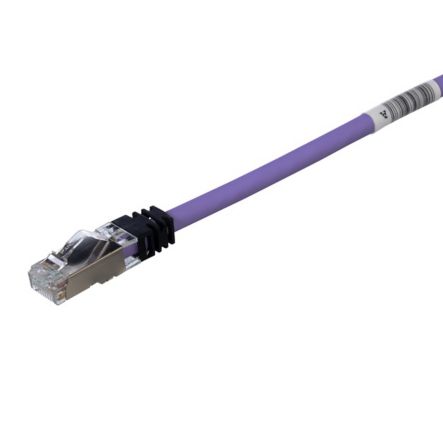

This TX6A 10Gig Cat 6A STP Patch Cord is a 17-Foot, Violet cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Panduit STP6X17VL Copper Patch Cord, Cat 6A, Violet S/FTP Cable, 17ft




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - STP6X17VL - Product Categories

  • Copper Systems
  • Patch Cords



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - STP6X17VL - Specifications

Brand NamePanduit
Manufacturer Part NumberSTP6X17VL
Item DescriptionPan-Net Patch Cord
Application1) Stacking switched and switch-to-switch links 2) Aggregation of Gigabit Ethernet channels 3) Streaming video 4) Scientific modeling 5) Storage area networks 6) Real-time intensive financial transactions 7) Animation 8) Medical imaging
Product TypePatch Cord
Conductor Gauge (AWG)26
Conductor Gauge (kcmil)0.2
Performance LevelCategory 6A
Conductor TypeStranded
Cable ConstructionS/FTP
Patch Cord TypeShielded
Plug Housing MaterialPolycarbonate
Jacket MaterialLSZH Material
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)17
Sub BrandPan-Net
Nominal Cable Outside Diameter (In.)0.24
Wiring SchemeT568B
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°F)-40
Boot ColorBlack
ColorViolet
Flammability RatingDual Rated (CM/LSZH)
Standards MetExceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards ISO 11801 Class EA for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
IEC Variant60603-7
PoE CompatibilityPoE, PoE+, PoE++
Plug Type8 Position
RapidID EnabledYes



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - STP6X17VL - Package Information

UPC07498301323
Standard Package Quantity1
Standard Package Volume (cf)0.0451
Standard Ctn. Quantity10
Standard Ctn. Volume (cf)0.4514



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - STP6X17VL - Documents and Downloads

Panduit STP6X17VL Product BulletinsClick to View
Panduit STP6X17VL Specification SheetsClick to View
Panduit STP6X17VL Specification SheetsClick to View
