Panduit T25T-L | Spiral Wrap | UPC - 07498370568
Panduit T25T-L | Spiral Wrap | UPC - 07498370568

Panduit T25T-L | Spiral Wrap | UPC - 07498370568

Part Number: PAN-T25T-L
0 Review(s)
Write a Review
Retail Price:$481.71
Your Savings:$28.22(6%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

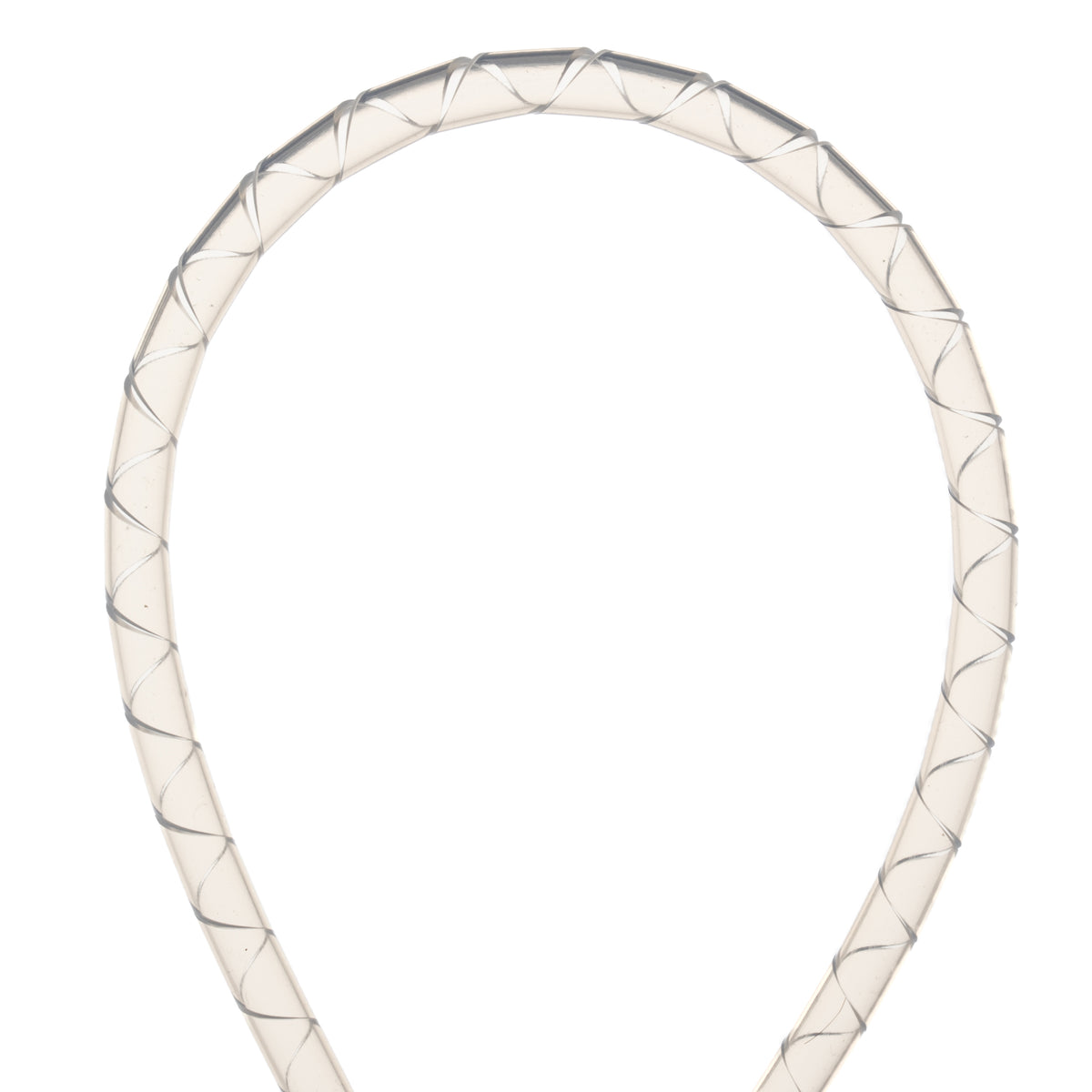

Panduit Spiral Wrap, Reusable Reverse Cut, 1/4 in OD Dia, 50 ft Length, 0.03 in Thickness, 2 in Maximum Bundle Dia, 3/16 in Minimum Bundle Dia, 3/8 in Pitch, -454 to 356 deg F, TFE, Natural

Features + Benefits

  • Allows breakouts of single/multiple cables
  • Provides abrasion protection for wire, cables, hoses and tubing
  • Multiple color allow easy identification of cable bundle
  • Installation tool is supplied and the spiral wrap is reusable

Panduit T25T-L | Spiral Wrap | UPC - 07498370568 Key Specs

ApplicationHarness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
Product TypeSpiral Wrap
EnvironmentIndoor and Outdoor
Flammability RatingUL94V-0
IncludesInstallation Tool
Resistance PropertiesAbrasion Resistance; Flame Resistant, Chemical Resistant, UV Resistant
Maximum Bundle Diameter (In.)2
Maximum Bundle Diameter (mm)50.8
Maximum Operating Temperature (°C)180
Maximum Operating Temperature (°F)356
Minimum Bundle Diameter (In.)0.18
Minimum Bundle Diameter (mm)4.8
Minimum Operating Temperature (°C)-270
Minimum Operating Temperature (°F)-454
Outer Diameter (In.)0.25
Outer Diameter (mm)6.4
Overall Length (ft.)50
Overall Length (m)15.2

Panduit T25T-L | Spiral Wrap | UPC - 07498370568 Data Sheets

Brochures | Smart Control Panel Solutions Brochures CPCB186-SA-ENGDownload and View
Application Guides | Best Seller Products for Industrial Construction, MRO and OEM Application Guide ELCB33Download and View
Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENGDownload and View

Panduit T25T-L | Spiral Wrap | UPC - 07498370568 Environmental Information

Environmental Information
Panduit's RoHS StatementDownload and View
