Panduit UTP28CH4MBU | Pan-Net Patch Cord
Panduit UTP28CH4MBU | Pan-Net Patch Cord

Panduit UTP28CH4MBU | Pan-Net Patch Cord

Part Number: MM04M-PAC5E-06
0 Review(s)
Write a Review
Availability:
$15.70
Retail Price:$16.10
Your Savings:$0.40(2%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Panduit UTP28CH4MBU | Pan-Net Patch Cord

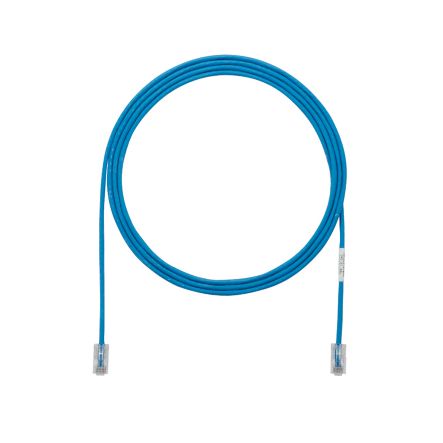

The TX5e Cat 5e UTP Patch Cord is a 4-Meter, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Panduit UTP28CH4MBU Copper Patch Cord, Cat 5e (SD), 28 AWG, Blue CM/LSZH UTP Cable, 4m




https://www.alldataresource.com/assets/images_commscope/product_classification.jpg

Panduit - UTP28CH4MBU - Product Categories

  • Copper Systems
  • Patch Cords



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Panduit - UTP28CH4MBU - Specifications

Brand NamePanduit
Manufacturer Part NumberUTP28CH4MBU
Item DescriptionPan-Net Patch Cord
Application(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Voice/data systems (4) Voice over Internet Protocol (VoIP)
Product TypePatch Cord
Conductor Gauge (AWG)28
Conductor Gauge (kcmil)0.2
Sub BrandPan-Net
Performance LevelCategory 5e
Conductor TypeStranded
Cable ConstructionU/UTP
Patch Cord TypeUnshielded
Plug Housing MaterialPolycarbonate
Jacket MaterialLSZH Material
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (m)4
Nominal Cable Outside Diameter (mm)3.8
Wiring SchemeT568A
Maximum Operating Temperature (°C)75
Minimum Operating Temperature (°C)-10
Maximum Storage Temperature (°C)70
Minimum Storage Temperature (°C)-40
Boot ColorClear
ColorBlue
Flammability RatingDual Rated (CM/LSZH)
Standards MetExceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant
IEC Variant60603-7
PoE CompatibilityPoE
Plug TypeMeets IEC 60603-7, RJ45
RapidID EnabledYes
Part Features100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch



https://www.alldataresource.com/assets/images_tripplite/package_includes.jpg

Panduit - UTP28CH4MBU - Package Information

UPC07498343371
Standard Package Quantity1
Standard Package Volume (cf)0.0273
Standard Ctn. Quantity10
Standard Ctn. Volume (cf)0.2728



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Panduit - UTP28CH4MBU - Documents and Downloads

Panduit UTP28CH4MBU Product BulletinsClick to View
Panduit UTP28CH4MBU Specification SheetsClick to View
Panduit UTP28CH4MBU Part DrawingsClick to View
Panduit UTP28CH4MBU Installation DocumentsClick to View
