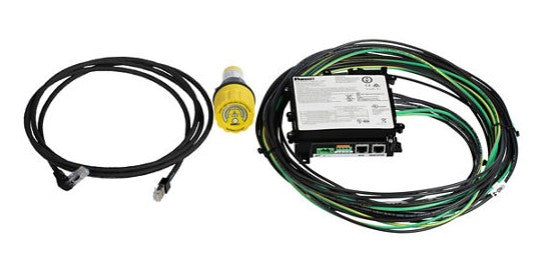

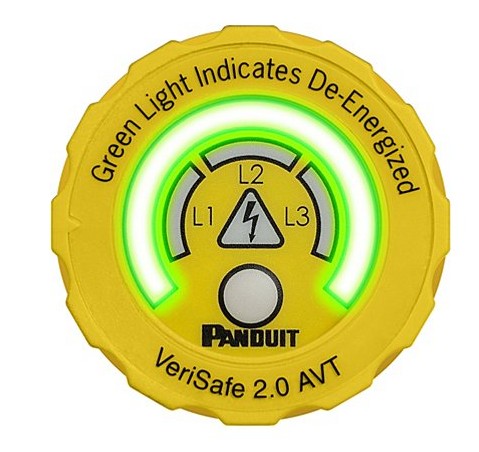

Panduit VS2-AVT-3PB-02 | VeriSafe 1kV Absence of Voltage Tester
Regular price
$1,075.76
Unit price
Brand: Panduit
|
SKU:
10660294
Regular price
$1,075.76
Unit price
Description
Description
Panduit VS2-AVT-3PB-02 | VeriSafe 1kV Absence of Voltage Tester
Verify the absence of voltage with one touch. Our 1kV absence of voltage tester delivers fast, trusted confirmation that cuts risk of exposure, strengthens compliance, and brings greater confidence.
Specifications
Specifications
Panduit - VS2-AVT-3PB-02 - Specifications
| Sub Brand | VeriSafe™ |
|---|---|
| Product Type | Absence of Voltage Tester |
| Cable Length (ft.) | 2 |
| Cable Length (m) | 0.6 |
| Sensor Lead Length (ft.) | 10 |
| Sensor Lead Length (m) | 3 |
| Maximum Voltage (V ac) | 1000 |
| Maximum Voltage (V dc) | 1000 |
| Maximum Voltage (V) | 1000 |
| Battery Voltage (V) | 3.6 |
| Standards Met | UL 1436, UL 508, CSA-C22.2 No. 14, CAN/CSA-C22 No.160, CAN/CSA-C22.2 No.107.1, IEC/UL/CSA C22.2 No. 61010-1, IEC/UL.CSA C22.2 No 61010-2-030, IEC 61508-1, -2 and -3 (SIL Rating) |
| Battery Type | Lithium-Ion |
| For Use With | 3-Phase AC systems |
| Power Source | Lithium Battery, 12-24 VDC, PoE |
| Network Compatible | Yes |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -25 |
| Minimum Operating Temperature (°F) | -13 |
