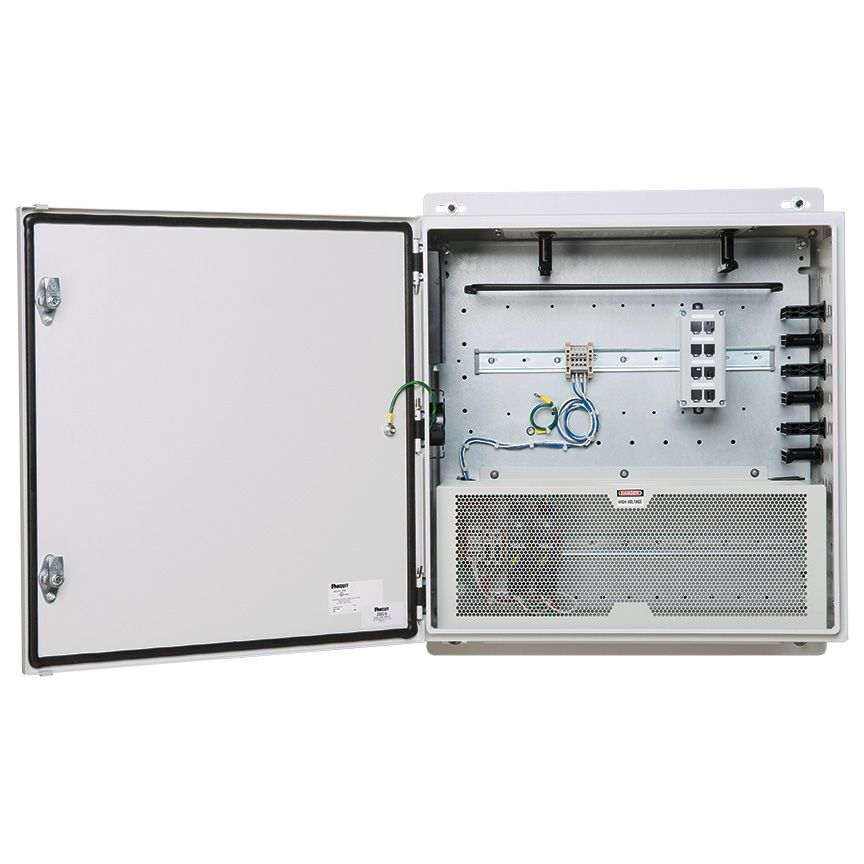

Panduit Z22U-S14 | Universal Network Zone | UPC - 61305602600

The universal network zone system is a mild steel enclosure that is 24" x 24”. This network zone system is made for one industrial switch and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber uplink patch cords with six adapters and redundant power supplies. The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

---

Panduit Z22U-S14 Key Specs

Product Type	Universal Network Zone
Material	Mild Steel
Number of Ports	8
Color	Gray
Number of Downlink Patch Cords	8
Number of Uplink Patch Cords	2
Overall Width (In.)	24
Overall Width (mm)	609.6
Overall Depth (In.)	11.6
Overall Depth (mm)	294.6
Overall Height (In.)	24
Overall Height (mm)	609.6
Mount Method	Wall Mount
Application	Industrial Automation
Finish/Coating	Powder-Coated
Downlink Patch Cord Type	(8) CAT 6 UTP Copper
Uplink Patch Cord Type	(2) MM LC Fiber
Connection Type	UTP
Switch Capacity	1
Compatible Switch Type	Industrial DIN Mount
Power Source	Redundant Power Supply
Standards Met	IP66 Rated, UL Type 4/12 or 4X, UL 508A Standard for Industrial Control Panels; RoHS Compliant
NEMA Rating	4/12
IP Rating	IP66
Includes	(2) Cable Management Side Panels, (1) Top Slack Plate, (1) 1/2" Conduit Plug for Power Entry, (1) 6 Port Ground Bar, (4) External Mounting Feet, (1) Protective AC Wiring Cover, (1) DIN Rail for Switches (16.0"), (1) DIN Rail for Power Accessories (20.5"), (1 or 2) 8 Port DIN Rail Mount Copper Patch Module (CDPP8RG), (1 or 2) 8 Port DIN Rail Mount Fiber Patch Module (FDME8RG), (1) 6 or 12 Port Fiber Uplink Patch Panel (6 Port - CBXF6BL-AY, 12 Port - CBXF12BL-AY), (1) Fiber Slack Spool, (1) Strain Relief Bar, (10) Cable Management L Rings
