Panduit Z22U-S15 | Universal Enclosure, 24"x24", Steel, 1...
Description
Description

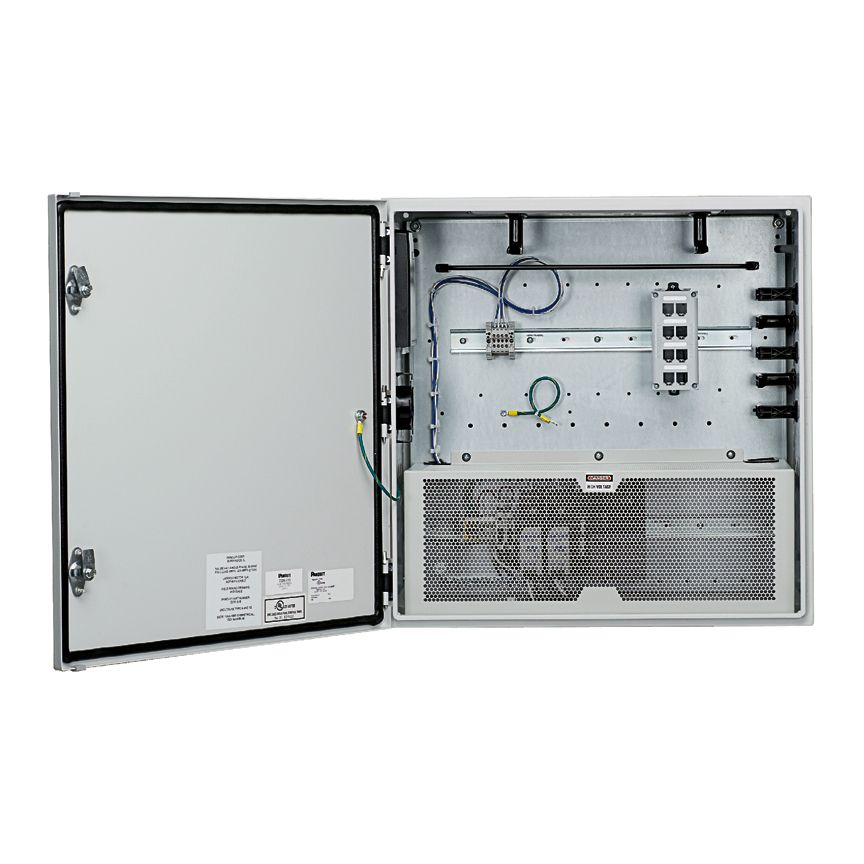

The universal network zone system is a mild steel enclosure that is 24" x 24". This network zone system is made for one industrial switch and includes eight Cat 6 UTP copper patch cords and jack modules, two multimode LC fiber uplink patch cords with six adapters and redundant power supplies and a maintenance-free Uninterruptible Power Supply (UPS). The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.
Panduit Universal Network Zone System - Network device security cabinet - gray - Z22U-S15.
Specifications
Specifications
Panduit - Z22U-S15 - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Pre-Configured Enclosures
Panduit - Z22U-S15 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | Z22U-S15 |
| Item Description | Universal Enclosure, 24"x24", Steel, 1 Switch |
| Product Type | Universal Network Zone |
| Material | Mild Steel |
| Number of Ports | 8 |
| Color | Gray |
| Number of Downlink Patch Cords | 8 |
| Number of Uplink Patch Cords | 2 |
| Overall Width (In.) | 24 |
| Overall Width (mm) | 609.6 |
| Overall Depth (In.) | 11.6 |
| Overall Depth (mm) | 294.6 |
| Overall Height (In.) | 24 |
| Overall Height (mm) | 609.6 |
| Mount Method | Wall Mount |
| Application | Industrial Automation |
| Finish/Coating | Powder-Coated |
| Downlink Patch Cord Type | (8) CAT 6 UTP Copper |
| Uplink Patch Cord Type | (2) MM LC Fiber |
| Connection Type | UTP |
| Switch Capacity | 1 |
| Compatible Switch Type | Industrial DIN Mount |
| Power Source | Redundant Power Supply |
| Standards Met | UL 508A Standard for Industrial Control Panels, UL Type 4/12 or 4X, IP66 Rated, RoHS Compliant |
| NEMA Rating | 4/12 |
| IP Rating | IP66 |
| Includes | (2) Cable Management Side Panels, (1) Top Slack Plate, (1) 1/2" Conduit Plug for Power Entry, (1) 6 Port Ground Bar, (4) External Mounting Feet, (1) Protective AC Wiring Cover, (1) DIN Rail for Switches (16.0"), (1) DIN Rail for Power Accessories (20.5"), (1 or 2) 8 Port DIN Rail Mount Copper Patch Module (CDPP8RG), (1 or 2) 8 Port DIN Rail Mount Fiber Patch Module (FDME8RG), (1) 6 or 12 Port Fiber Uplink Patch Panel (6 Port - CBXF6BL-AY, 12 Port - CBXF12BL-AY), (1) Fiber Slack Spool, (1) Strain Relief Bar, (10) Cable Management L Rings |
Panduit - Z22U-S15 - Package Information
| UPC | 61305639559 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 10.0104 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
