Panduit Z23C-S | Pre-Configured Network Zone | UPC - 07498325930
Panduit Z23C-S | Pre-Configured Network Zone | UPC - 07498325930

Panduit Z23C-S | Pre-Configured Network Zone | UPC - 07498325930

Part Number: 974524
0 Review(s)
Write a Review
Retail Price:$2,900.03
Your Savings:$223.96(8%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

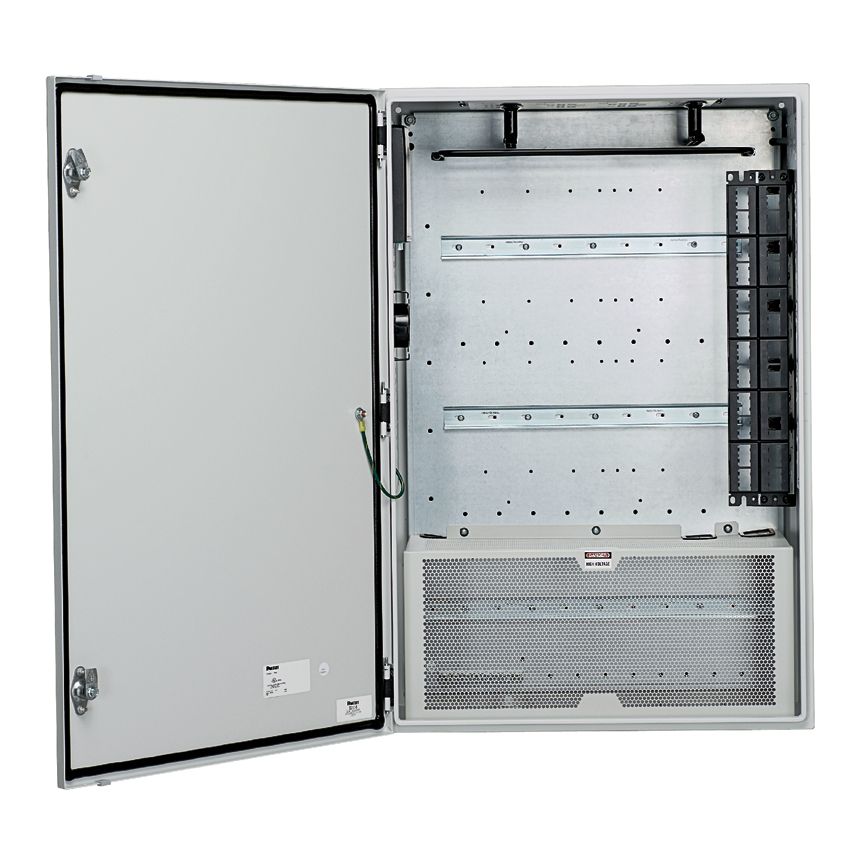

The network zone system is a mild steel enclosure that is 24" x 36". This network zone system is made for two industrial switches and includes sixteen Cat 6 UTP copper patch cords and jack modules, four multimode LC fiber patch cords with six LC adapters, backplane and cable management. With UL Type 4/12 and IP 66 ratings, the enclosures provide reliability and high performance, as an integral component of the end-to-end solution for Industrial Networks.

Panduit Z23C-S Key Specs

Product TypePre-Configured Network Zone
MaterialMild Steel
Number of Ports48
Number of Downlink Patch Cords16
Number of Uplink Patch Cords4
Overall Width (In.)24
Overall Width (mm)609.6
Overall Depth (In.)11.6
Overall Depth (mm)294.6
Overall Height (In.)36
Overall Height (mm)914.4
Mount MethodWall Mount
ApplicationIndustrial Automation
Downlink Patch Cord Type(16) CAT 6 UTP Copper
Uplink Patch Cord Type(4) MM LC Fiber
Connection TypeUTP
Switch Capacity2
Compatible Switch TypeIndustrial DIN Mount
Maximum Load Capacity (kg)158.75
Maximum Load Capacity (lb)350
Standards MetUL 508A Standard for Industrial Control Panels, UL Type 4/12 or 4X, IP66 Rated, RoHS Compliant
NEMA Rating4/12
IP RatingIP66
Includes(2) Cable Management Side Panels, (1) Top Slack Plate, (1) 1/2" Conduit Plug for Power Entry, (4) External Mounting Feet, (1) AC Wiring Cover, (2) DIN Rail for Switches (17.5"), (1) DIN Rail for Power (21.5"), (1) Fiber Slack Spool, (1) Strain Relief Bar 1- 19", (2) Rack Unit Patch Panel, (1) 6 Port Fiber Surface Mount Box, (9) Cable Management L Rings, (1) Ground Bar, (16) Cat 6 Copper Patch Cord, 3ft, (16) Cat 6 Mini-Com Copper Modules (4) LC Fiber Optic Patch Cords, 1m, (6) LC Fiber Optic Adapter Modules

Panduit Z23C-S Data Sheets

Installation Documents | Pre-Configured Network Zone System Z23C: V00028MWDownload and View
Product Bulletins | Network Zone System: RKCB36--SA-ENGDownload and View
Case Studies | Marcegaglia Case Study: CPCS58-WW–ENGDownload and View
Application Guides | Network Zone Systems Thermal ManagementDownload and View
Part Drawings | Z23C-** Pre-Configured Zone EnclosureDownload and View
