Part Number: 974527
0 Review(s)
Write a Review
Retail Price:$6,666.36
Your Savings:$514.83(8%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

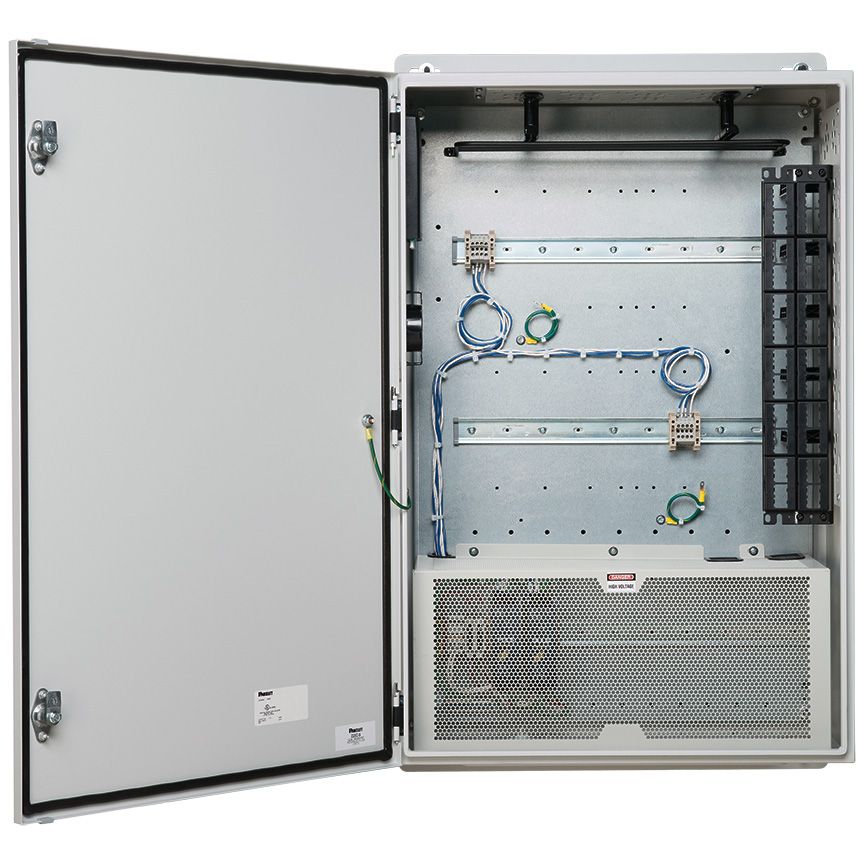

The universal network zone system is a mild steel enclosure that is 24" x 36”. This network zone system is made for two industrial switches and includes sixteen Cat 6 shielded copper patch cords and jack modules, four multimode LC fiber uplink patch cords with six adapters and redundant power supplies. The universal network zone system provides usability like IT switches for any customer owned industrial switch to be deployed on the plant floor.

Panduit Z23U-S24S Key Specs

Product TypeUniversal Network Zone
MaterialMild Steel
Number of Ports48
Number of Downlink Patch Cords16
Number of Uplink Patch Cords4
Overall Width (In.)24
Overall Width (mm)609.6
Overall Depth (In.)11.6
Overall Depth (mm)294.6
Overall Height (In.)36
Overall Height (mm)914.4
Mount MethodWall Mount
ApplicationIndustrial Automation
Downlink Patch Cord Type(16) CAT 6A STP Copper
Uplink Patch Cord Type(4) MM LC Fiber
Connection TypeSTP
Switch Capacity2
Compatible Switch TypeIndustrial DIN Mount
Power SourceRedundant Power Supply
Maximum Load Capacity (kg)158.75
Maximum Load Capacity (lb)350
Standards MetUL 508A Standard for Industrial Control Panels, UL Type 4/12 or 4X, IP66 Rated, RoHS Compliant
NEMA Rating4/12
IP RatingIP66
Includes(2) Cable Management Side Panels, (1) Top Slack Plate, (1) 1/2" Conduit Plug for Power Entry, (1) 6-Port Ground Bar, (4) External Mounting Feet, (1) AC Wiring Cover, (2) DIN Rail for Switches (16.0"), (1) DIN Rail for Power (20.5"), (1) 6 or 12 Port Fiber Uplink Patch Panel (6 Port-CBXF6BL-Y, 12 Port-CBXF12BL-AY), (1) Fiber Slack Spool, (1) Strain Relief Bar, (1) 19", 2 RU 48-Port Patch Panel (CPP48WBLY), (9) Cable Management L Rings

Panduit Z23U-S24S Data Sheets

Product Bulletins | Network Zone System: RKCB36--SA-ENGDownload and View
Installation Documents | Universal 36" Enclosure: CD-IA-0005Download and View
Specification Sheets | Universal Network Zone System ZCSP25--UKEDownload and View
Flyers | Universal Network Zone System: UKEDownload and View
Flyers | Universal Network Zone System: ENGDownload and View
Part Drawings | Network Zone System, Pre-Wired For Up To Two Din Mount Switches And Included ConnectivityDownload and View
Part Drawings | Universal Network Zone System, 100-240vac Input, Redundant 91.2w 24vdc Power SuppliesDownload and View

Panduit Z23U-S24S Environmental Information

Environmental Information
Panduit's RoHS StatementDownload and View
