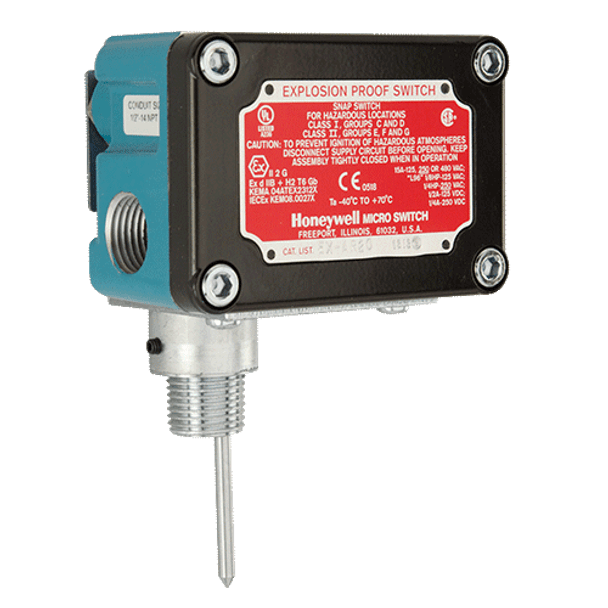

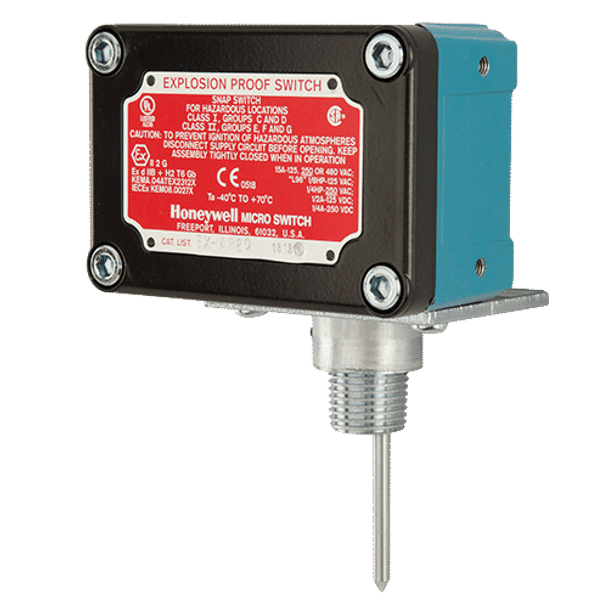

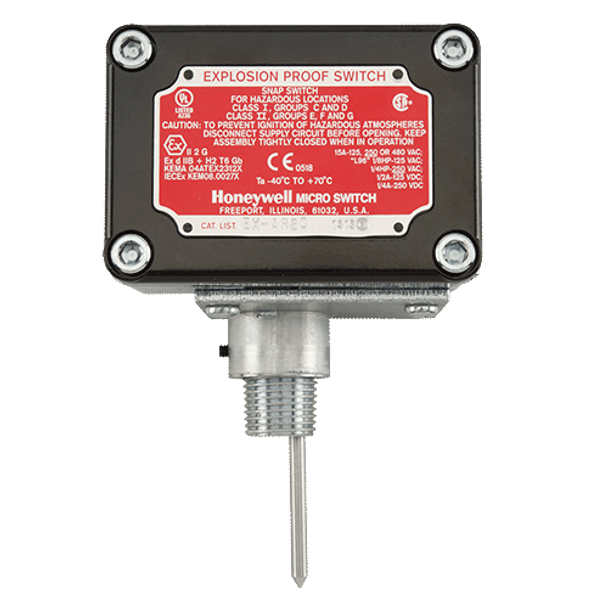

Safe Signal PIBVEXP | Explosion Proof Supervisory Tamper Switch For Butterfly and Post Indicator Valves PIV

Safe Signal - PIBVEXP - Technical Specifications

• Robust Construction: The PIBVEXP switches are contained in a compact and rugged NEMA 1, 7 and 9 rated enclosure. The enclosure operates across a wide temperature range, from –40°F to 160°F. Simplified Operation. The PIBVEXP covers are secured with four captured screws to prevent screw misplacement while the cover is removed. A single tapped conduit entrance and ample wiring space provide quick and easy electrical connection.
• Intended Use: The PIBVEXP monitors the open position of post indicator and butterfly type valves.
• Conduit Entrances: One tapped opening for 1/2" conduit
• Contact Ratings: One SPDT (Form C);15A, 125/250/480VAC; 1/8hp, 125VAC; 1/4hp, 250VAC; 1/2A 125VDC; 1/4?
• Enclosure Rating: UL NEMA 1, 7, 9??
• Hazardous Location Classifications: Class I, Groups C, D; Class II, Groups E, F, G
• Operating Temperature Range: -40°F to 160°F (-40°C to 71°C)
• Overall Dimensions: 3.75"L x 3.25"D x 4.5"H
• Pressure Connection: 1/2" NPT male brass fitting
• Shipping Weight: 1.75 lbs.
• Valve Types: Post indicator valves & #059 butterfly valves
