Safety Technology STI-1229HTR240-HAZ | Stopper Dome Heated Enclosur...
Description
Description

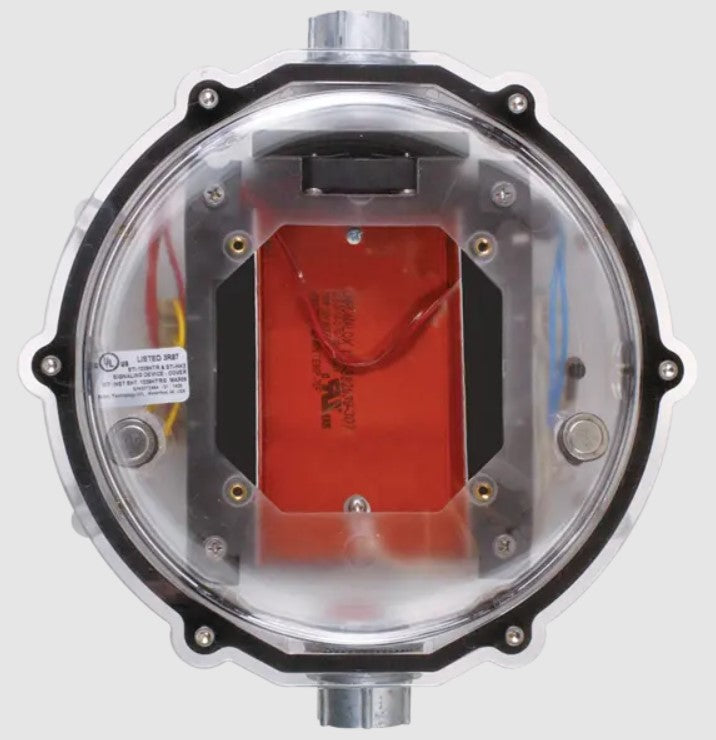

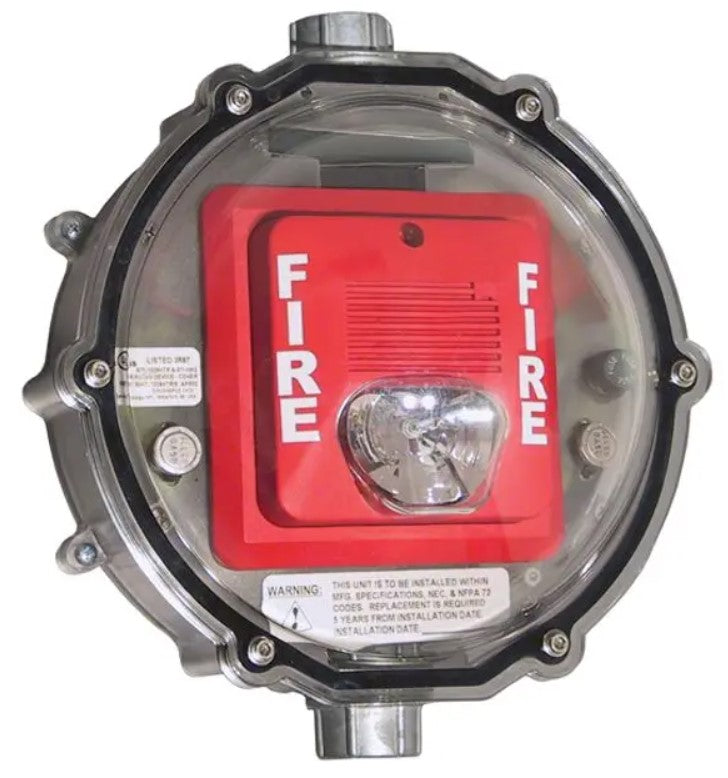

Now there is a way to protect your signaling device located where temperature or environmental conditions exceed the suggested operating range. This protective cover with heater assembly for strobe appliances, is UL/cUL Listed down to -70°F (-57°C) and Type 4X Rated. Thermostatically controlled heater and a continuous duty fan maintain a uniform temperature in the cover when located in a cold environment. Applications include, but are not limited to, refrigerators, freezers, meat packaging plants, arctic environments, ocean rigs, slaughter houses, etc.
Key Features
- Maintains operating strobe appliance temperature with external temperatures to -70°F (-57°C).
- For use in areas where temperature or environmental conditions exceed the operating range of fire strobe signaling devices.
- Protects ADA Compliant strobes to UL 1971 standards.
- The thick, clear polycarbonate cover is UV-stabilized.
- Enables ADA Compliant for visual fire protection systems where freezing temperatures or other harsh conditions exceed the operating limits of strobe signal devices.
- Enclosure rated to NEMA 4X Standards. Heater assembly rated to -70°F (-57°C).
- UL/cUL ambient rating -70°F to 120°F (-57°C to 49°C) indoors or outdoors.
- Prevents build up of snow on the unit or entry of moisture in wash-down areas to assure that strobes remain clearly visible.
Specifications
Specifications
Specifications
| Polycarbonate Enclosure | Flammability |
|---|---|
| - UL94 V-2 | Wall Thickness |
| - 0.2 in (5.1mm) | NEMA Rating |
| - 4X, indoor and outdoor use | Hazardous Rating |
| - Class II Groups FG Div. 2 and Class III locations | Warranty |
| - Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). | Silicone Laminate Heater |
| STI-1229HTR-HAZ 110 VAC 50/60 Hz | - UL Recognized Component |
| STI-1229HTR240-HAZ 240 VAC 50/60 Hz | - UL Recognized Component |
| 100 Watts | Life: @ -10°C (14°F) ~ 70°C (158°F) |
| - 5 Years | Duty Cycle |
| -40°F (-40°C) | -0.53 |
| -70°F (-57°C) | - 71%M |
| Fan | 24 VDC, 90 mA |
| - UL Recognized Component | Life |
| - 5 Years Continuous Duty | Gasket: |
| Material | - Neoprene |
| Life | - 5 Years |
