Brand: Seco-Larm Usa
|
SKU:
10367729

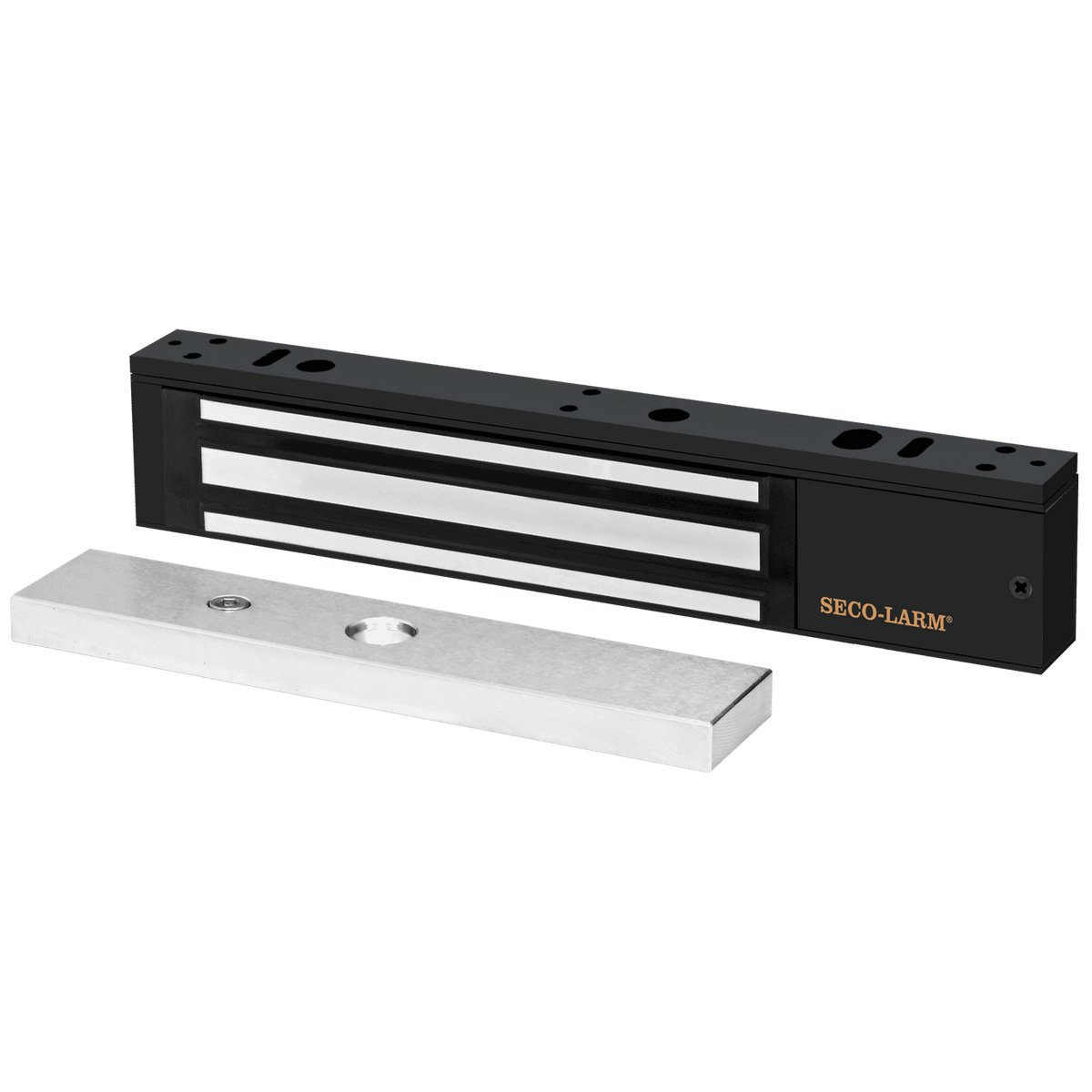

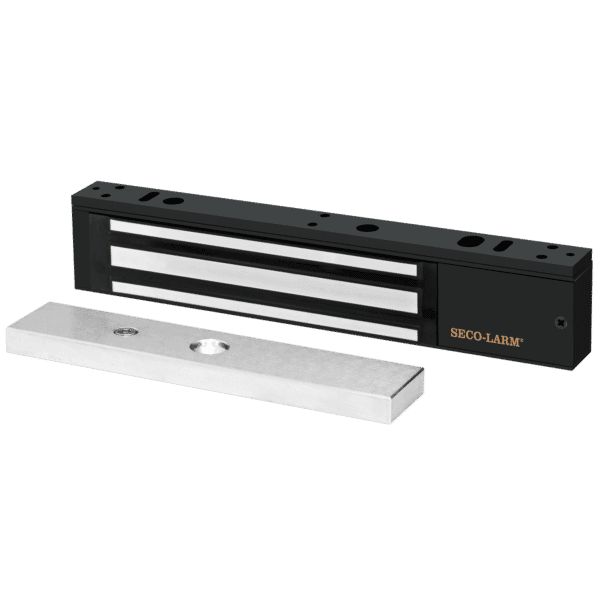

Seco-Larm E-941SB-600 | 600-lb Electromagnetic Lock, UL Listed
Regular price
$151.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm E-941SB-600 | 600-lb Electromagnetic Lock, UL Listed
Regular price
$151.31
Unit price
Brand: Seco-Larm Usa
|
SKU:
10367729
Regular price
$151.31
Unit price
Shipping calculated at checkout.
Description
Description
Seco-Larm E-941SB-600 | 600-lb Electromagnetic Lock, UL Listed
12 or 24 VDC operation. UL, CUL listed. Available November 2022
Seco-Larm - E-941SB-600 - Features
- 600-lb (272kg) Holding force
- No residual magnetism
- MOV Surge protection
- Anodized aluminum housing with black finish
- Adjustable mounting bracket
- Complete mounting hardware for typical installations

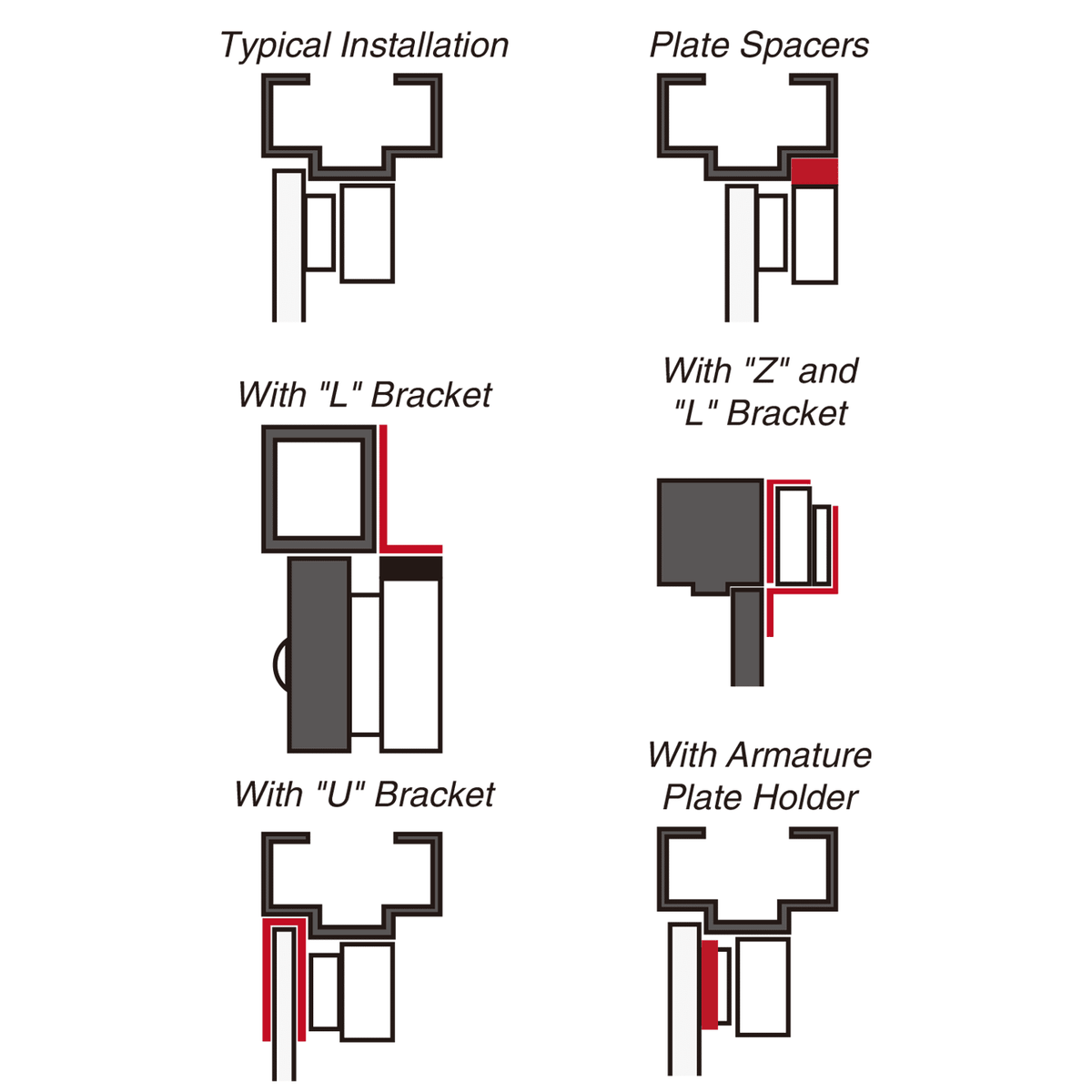

- Additional brackets available for easy mounting or atypical situations
- Detachable faceplate for easy access to wiring
- 12/24VDC Selectable
- Multiple UL listings:
- UL294 Access Control System Units – USA
- UL1034 Burglary Resistant Electric Lock – USA
- UL864 Fire Alarm Systems – USA
- UL10C Positive Pressure Fire Test – USA
- UL10B Fire Test of Door Assemblies – USA
- ULC-S104 Fire Test of Door Assemblies – Canada
- Lifetime limited warranty
- Warranty applies in the USA and Canada only. Contact SECO-LARM for details.
Specifications
Specifications
Seco-Larm - E-941SB-600 - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | E-941SB-600 |
| Item Description | 600-lb Electromagnetic Lock, UL Listed |
| Operating voltage | 12/24 VDC (selectable) |
| Current draw | 500mA@12VDC, 250mA@24VDC |
| Door thickness (max.) | 2? (50mm) |
| Holding force | 600-lb (272kg) |
| Dimensions – Magnet | 9-13/16?x1-11/16?x1? (250x43x25 mm) |
| Dimensions – Armature Plate | 7-1/4?x1-1/2?x1/2? (185x38x12 mm) |
| Operating humidity | 0~85 (non-condensing) |
| Operating temperature | 32°~120° F (0°~49° C) |
| Lock surface temperature | ? Ambient temperature ± 68° F (20° C) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
| Weight | 4-lb 6-oz (2kg) |
| Finish | Black |
| Holding Force Lbs | 600 |
| UNSPSC Code | 46171500 |
