Seco-Larm E-964-S65TB | Mini Photobeam Sensor
Regular price
$33.21
Unit price
Brand: Seco-Larm Usa
|
SKU:
10696130
Regular price
$33.21
Unit price
Description
Description

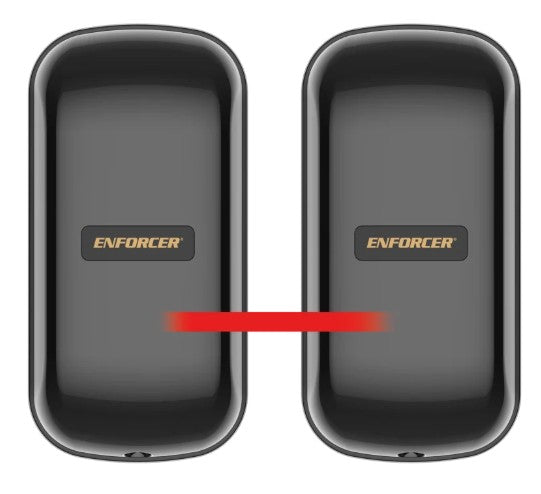

Seco-Larm E-964-S65TB | Mini Photobeam Sensor
ENFORCER Mini Photobeam Sensors offer 4 selectable frequencies to avoid interference in installations with multiple pairs, IR signal secondary processing to make them highly adaptable to adverse environmental conditions, wide-voltage range to reduce voltage drop issues with longer wiring distances, all in a small, less-conspicuous size. Their switchable NO/NC output adapts to various alarm control systems, and they are IP55 weatherproof for installation indoors and out.
Specifications
Specifications
SECO-LARM - E-964-S65TB - Specifications
| Manufacturer Part Number | E-964-S65TB |
|---|---|
| Brand Name | Seco-Larm Usa |
| Item Description | Mini Photobeam Sensor |
| Type | Photobeam |
| No. of beams | 1 |
| No. of beam frequencies | 4 |
| Detection method | Beam completely blocked |
| Sensing range | 65? (20m) |
| Response time | 50ms |
| Operating voltage | 12~24 VDC, 12~20 VAC |
| Alarm time range | ? 2s |
| Light source | Infrared LED, 940nm |
| Connectors | Screw terminals |
| IP Rating | IP55 Weatherproof |
| Operating humidity | Up to 95%, non-condensing |
| Operating temperature | ?22°~158° F (?30°~70° C) |
| Dimensions (both units) | 1-3/4?x3-3/4?x1-1/4? (45x95x32 mm) |
