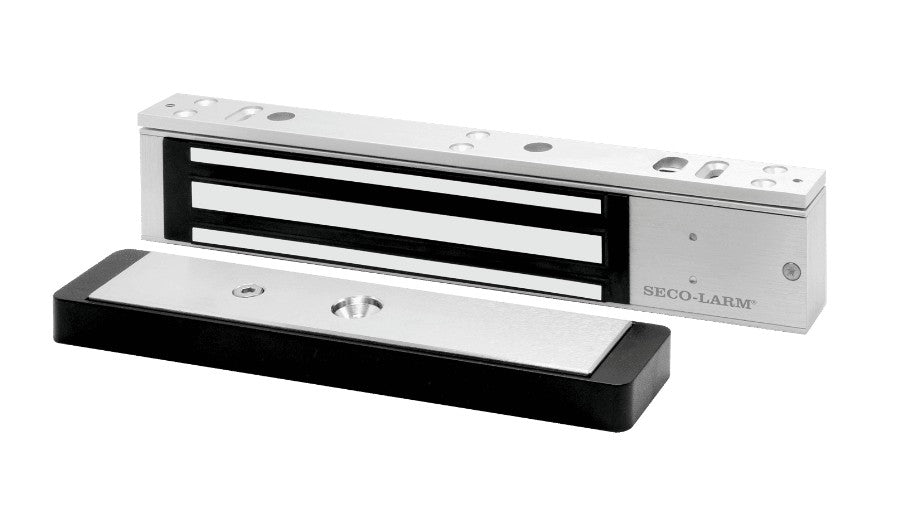

Seco-Larm Usa E-941SA-600DPSQ | 600-lb Electromagnetic Lock, Bond Sensor, Status LED, Door Position Sensor
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
Seco-Larm Usa - E-941SA-600DPSQ - Features
- 600-lb (272kg) Holding force
- No residual magnetism
- MOV Surge protection
- Built-in status LED shows locked/unlocked status
- Built-in bond sensor with 3A@12VDC dry relay output for monitoring door status
- Built-in door position sensor with 0.2A@12VDC reed switch for monitoring door-closed status
- Anodized aluminum housing (US 28)
- Adjustable mounting bracket
Specifications
Specifications
Seco-Larm Usa - E-941SA-600DPSQ - Specifications
| Holding force | 600-lb |
|---|---|
| Operating voltage | 12 /24 VDC (selectable) |
| Current draw | 12VDC: 500mA 24VDC: 270mA |
| Bond sensor | SPDT relay, 3A@12VDC |
| Door position sensor | Reed switch, 0.2A@12VDC |
| Operating temperature | 32°~120°F (0°~49°C) |
| Dimensions – Magnet | 9-13/16?x1-11/16?x1? (250x43x25 mm) |
| Dimensions – Armature | 7-1/4?x1-1/2?x1/2? (185x38x12 mm) |
| UNSPSC Code | 46171500 |
