Brand: Seco-Larm Usa
|
SKU:
10633661
Seco-Larm Usa SD-9563-KSVQ | 6? Round IR Wave-to-Open Sensor with Manual Override
Regular price
$127.15
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm Usa SD-9563-KSVQ | 6? Round IR Wave-to-Open Sensor with M...
Regular price
$127.15
Unit price
Brand: Seco-Larm Usa
|
SKU:
10633661
Regular price
$127.15
Unit price
Description
Description

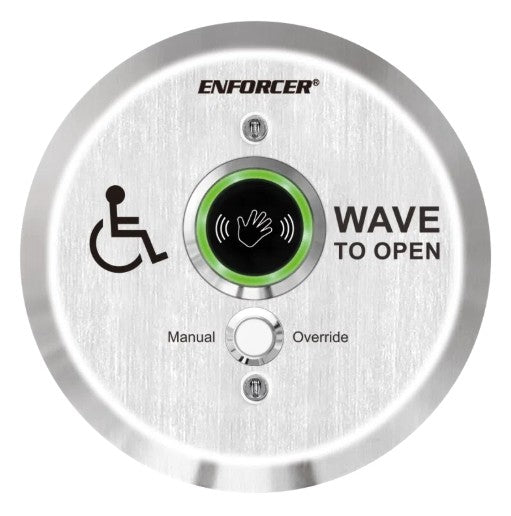

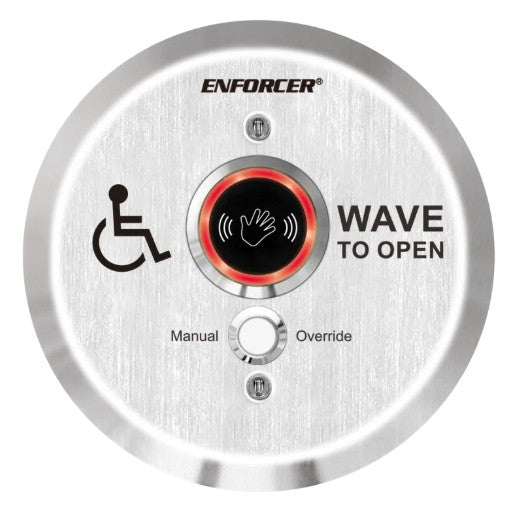

Seco-Larm Usa SD-9563-KSVQ | 6? Round IR Wave-to-Open Sensor with Manual Override
The ENFORCER 6? Round IR Wave-to-Open Sensor with Manual Override is a full-featured exit plate using IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Seco-Larm Usa - SD-9563-KSVQ - Features
- Adjustable sensor range up to 7? (18cm)
- 1.2A relay, adjustable trigger duration 0.5~30 seconds or toggle
- LED illuminated sensor for easy identification
- Selectable LED color turns from red to green (or green to red) when the sensor is activated
- 6? Round stainless steel plate for mounting to a single-gang back box
- IP65 Weatherproof for outdoor use
- Power must be provided by low-voltage power-limited/Class 2 power supply
- Use only low-voltage field wiring and do not exceed 98.5 ft (30m)
Specifications
Specifications
Seco-Larm Usa - SD-9563-KSVQ - Specifications
| Operating temperature | 12~24 VDC |
|---|---|
| Relay type | SPDT dry contact, 1.2A@24VDC |
| Response time | 10ms |
| Ouput duration | 0.8~30 s, toggle |
| Range | 2?~7? (5~18 cm) |
| Destructive attack level | Level I |
| IP Rating | Weatherproof, IP65 |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | ø6? (152 mm) |
| Weight | 7.3-oz (208g) |
| UNSPSC Code | 46171500 |
