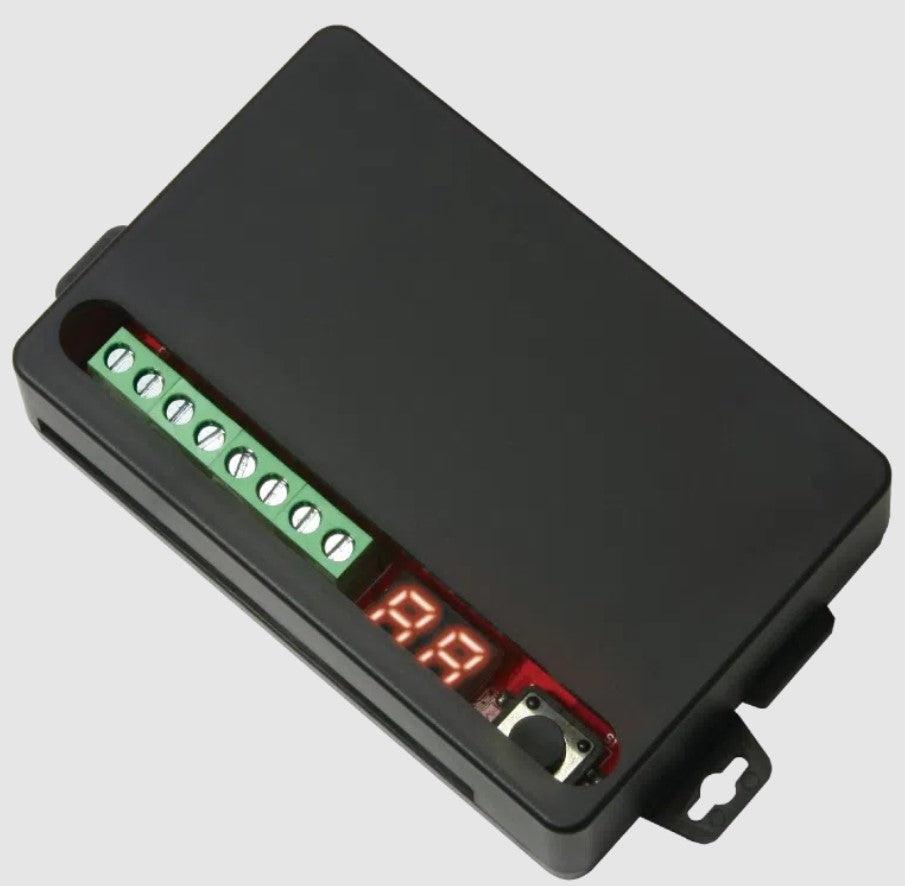

Seco-Larm Usa SK-910RD2-4 | 2-Channel RF Receiver

ENFORCER 2-Channel RF Receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more. Now with dual-frequency support, it offers increased flexibility and compatibility with all ENFORCER 433.92 or 315MHz transmitters, both fixed and code-hopping CODEBUMP™ variants.

Seco-Larm - SK-910RD2-4 - Features

• Flexible 10~24 VAC/VDC operating voltage
• Simultaneously receive 433.92 and 315MHz signals with optional Extended Range Antenna
• Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna§
• Independently programmable channels and up to 15 transmitter button codes per channel
• Pushbutton programming, no jumpers to cut or switches to set
• 5 Output modes/channel—timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity)
• Compatible with all ENFORCER SK-series transmitters of the receiver’s base frequency and the optional Extended Range Antenna’s frequency

Seco-Larm - SK-910RD2-4 - Specifications

Device	ACCESSORY
Technology	ACCESSORY
UNSPSC Code	43223100
Operating frequency	433.92MHz*
Memory capacity	15 per channel
Operating voltage	10~24 VAC/VDC
Operating current	Standby: 16mA@12VDC, 12mA@24VDC Active: 60mA@12VDC, 50mA@24VDC (both per channel)
Relay output modes	Type: Independent, sequence, access control Modes: .05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
Relay contacts	Number: 2 Rating: Form C 10A@14VDC
Connectors	Screw terminals, +, -, with NO/NC/COM per relay
Digital display	2-digit, 7-segment LED

Seco-Larm - SK-910RD2-4 - Documents and Downloads

Seco-Larm Usa SK-910RD2-4 Data Sheet

Click to View
