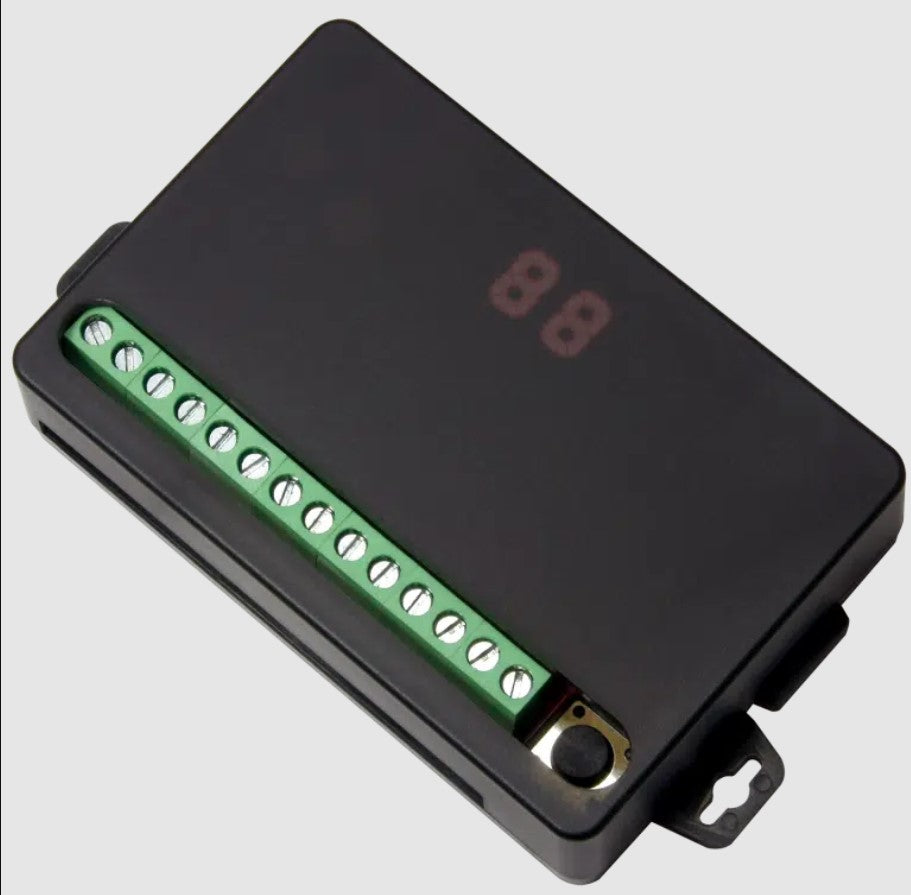

Seco-Larm Usa SK-910RD4 | ENFORCER 4-Channel RF Receiver, 315MHz
Regular price
$86.15
Unit price
Brand: Seco-Larm Usa
|
SKU:
10396601-FEM
Regular price
$86.15
Unit price
Description
Description
Seco-Larm Usa SK-910RD4 | ENFORCER 4-Channel RF Receiver, 315MHz
The ENFORCER 4-Channel RF receivers meet the growing demand for multi-channel receivers with multiple independently controlled output modes and can be used to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual frequency, they are even more flexible and compatible with all ENFORCER transmitters of the same frequencies, including both fixed and code-hopping CODEBUMP™ variants.
Seco-Larm - SK-910RD4 - Features
- Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
- Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
- Range: Up to 500ft (150m), or up to 1,000ft (300m) with optional Extended Range Antenna (SK-91ERSD)
- Up to 60 transmitter button codes can be learned per channel
- Alphanumeric display indicates learn mode entered, transmitter learned, memory cleared, RF reception, and relay output mode
- Display hidden in semi-transparent case until lit
- Pushbutton programming, no need to cut jumpers
- Compatible with all ENFORCER transmitters of the same frequency
- 433.92MHz models are also available.
Specifications
Specifications
Seco-Larm - SK-910RD4 - Specifications
| UNSPSC Code | 43201553 |
|---|---|
| Operating frequency | 315MHz* |
| Memory capacity | 60 per channel |
| Operating voltage | 10~24 VAC/VDC |
| Operating current | Standby: 16mA@12VDC, 12mA@24VDC Active: 60mA@12VDC, 50mA@24VDC (both per channel) |
| Relay output | Type: Independent, sequence, access control Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity) |
| Relay contacts | Number: 4 Rating: Form C 10A@14VDC |
| Connectors | Screw terminals, +, -, with NO/NC/COM per relay |
| Digital display | 2-digit, 7-segment LED |
