Securitron Magnalock AQD4-4C1R2 | AQD4 Series Switching Power Supply
Regular price
$376.36
Unit price
Brand: Securitron Magnalock
|
SKU:
CS514711
Regular price
$376.36
Unit price
Description
Description

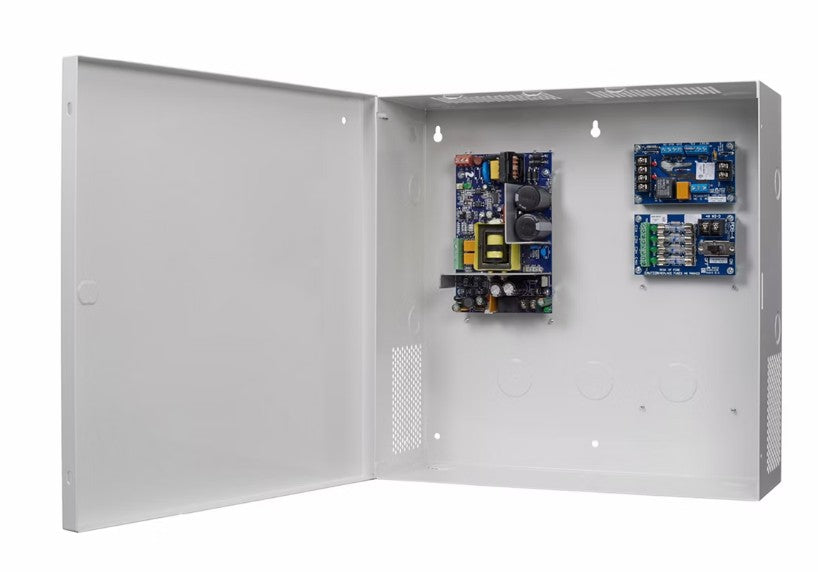

Securitron Magnalock AQD4-4C1R2 | AQD4 Series Switching Power Supply
The Securitron AQD4 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 4 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Securitron Magnalock - AQD4-4C1R2 - Features
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 89% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V or 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
Specifications
Specifications
Securitron Magnalock - AQD4-4C1R2 - Specifications
| Fuse Type | PTC polyswitch |
|---|---|
| Maximum Operating Temperature (° F) | 122 |
| Minimum Operating Temperature (° F) | -4 |
| Power Supply Type | Switching |
| Voltage | 12/24 |
| Output Voltage | 12.5 or 25 VDC |
| Height | 14 |
| Width | 14 |
| Depth | 4-3/4 |
| Amps | 1.1 TO 2.0 |
| Battery Charging | Battery Charging Circuit |
| Output Voltage | Selectable 12 Or 24 Volts Dc |
| Product Type | Boxed Power Supply |
| Sales Category | Electric Boxed Power Supply |
| UNSPSC Code | 43211700 |
