Securitron Magnalock M380EBDX-613E | Magnetic Lock, Bracket Mounted
Regular price
$836.55
Unit price
Brand: Securitron Magnalock
|
SKU:
CS515261
Regular price
$836.55
Unit price
Description
Description

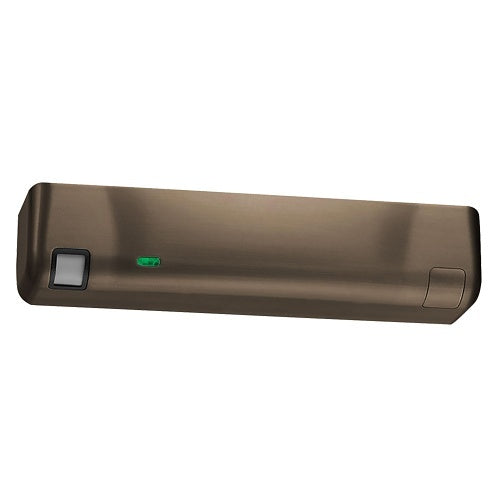

Securitron Magnalock M380EBDX-613E | Magnetic Lock, Bracket Mounted
The M380EBDX-613E from Securitron is a Maglock with BondSTAT Monitor and Door Position Switch in Dark Oxidized Satin Bronze. The Securitron M380EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.
Securitron Magnalock - M380EBDX-613E - Features
- Sustainability documentation
- 600 lbs holding force for indoor use
- Energy, efficient, low power usage
- Automatic dual-voltage-no field adjustment required
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Available integrated BondSTAT and Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Rust resistant — all ferrous metal surfaces plated for durability
- Adjustable automatic relock timer (0 to 30 seconds) BD and BDX Only
Specifications
Specifications
Securitron Magnalock - M380EBDX-613E - Specifications
| Holding Force Lbs | 600 |
|---|---|
| Input Voltage | Selectable 12 Or 24 Volt Dc |
| Mounting | Surface Mounted |
| Switches | Bond Sensor |
| Product Type | Single Electromagnetic Lock |
| Ul Listing | Ul Listed |
| Sales Category | Electric Magnetic Lock |
| Finishing | Dark Oxidized Satin Bronze |
| Holding Force | 600 lb |
| Lock Depth | 2.44" |
| Lock Height | 2.19" |
| Lock Width | 10" |
| UNSPSC Code | 46171500 |
