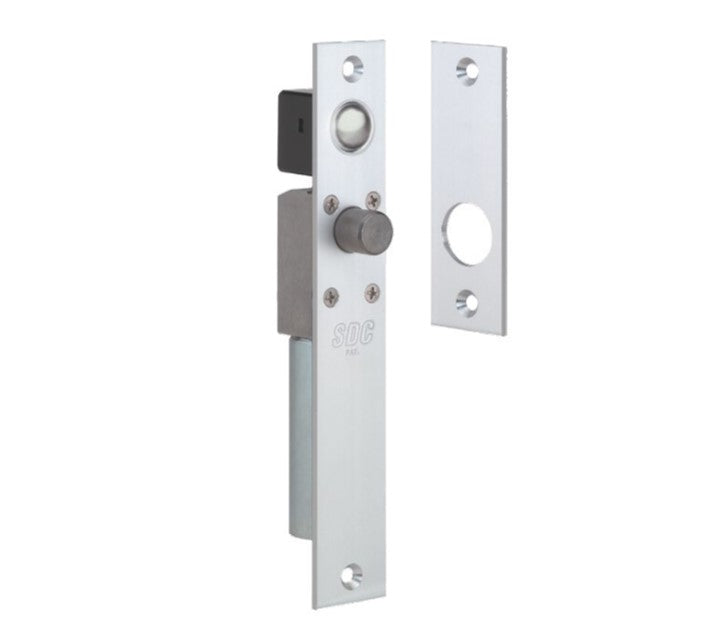

Security Door Controls 1490A-1V | Narrow Right Angle Bolt Lock, Failsafe

All Spacesaver locks are equipped with stainless steel bolts, specification grade solenoids and automatic relock ball switches. Bolts rotate freely, making attempts to tamper or cut extremely difficult. Specification grade solenoids facilitate superior overall performance in both force and longevity, when compared to commercial grade solenoids. Automatic relock ball switches keep the bolt retracted while the door is open. The door depresses the ball switch on closure, causing the bolt to project automatically, locking the door. Additionally, ball switches are field adjustable to compensate for wide door gap and bidirectional to permit use on swinging and sliding doors.

Security Door Controls - 1490A-1V - Features

• Concealed mortise right angle design
• Stainless steel bolt
• Specification grade solenoid
• Automatic relock
• Field adjustable and bidirectional automatic relock ball switch
• Mounting tabs included
• Field selectable dual voltage
• Voltage and current spike protection • Power regulator included

Security Door Controls - 1490A-1V - Specifications

Mount	Mortise
Operation	Failsafe
Bolt	5/8” Diameter Solid Stainless Steel
Bolt Throw	1/2”
Faceplate	8” x 11/4” x 1/8”
Strike	4” x 11/2” x 1/8”
Weight	2 lbs
Finish	Us28 Satin Anodized Aluminum
Product Type	Electromagnet Component
Sales Category	Electric Magnetic Lock Acc
UNSPSC Code	46171500

Security Door Controls - 1490A-1V - Documents and Downloads

Security Door Controls 1490A-1V Data Sheet

Click to View
