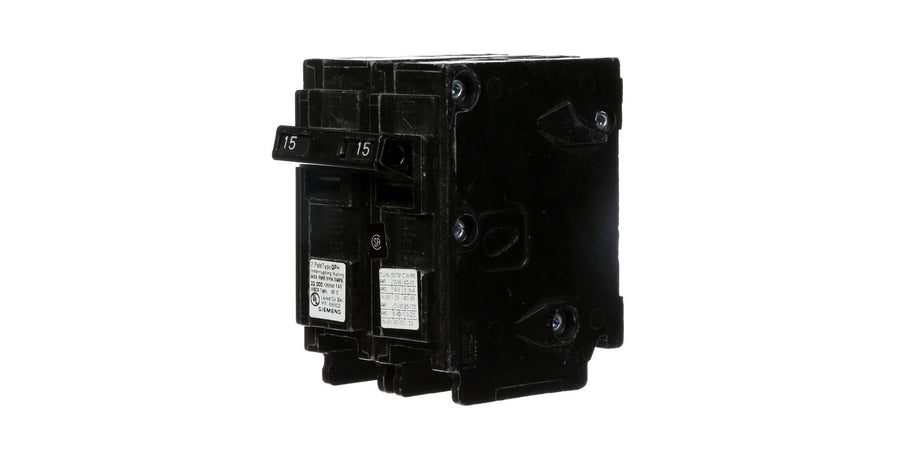

Siemens US2:Q215 | Miniature Circuit Breaker, Toggle Actuator, 15 A, 10 kA Capacity, AFCI, Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemens US2:Q215 | Miniature Circuit Breaker, Toggle Actuator, 15 A...
Description
Description
Miniature Circuit Breaker, Actuator Style: Toggle, Amperage: 15 A, Breaking Capacity: 10 kA, Circuit Breaker Properties: AFCI, Color: Black, Depth: 3 in., Height: 2 in., Line Terminal: Lug, Load Terminal: Lug, Mounting Type: DIN Rail, Number of Poles: 2P, Special Rating: UL, Terminal Connection: Plug-In, Trip Curve: Type C, Trip Type: Thermal Magnetic, Voltage AC Rating: 120/240 VAC, Width: 3 in., Wire Size - Maximum: 12 AWG (Cu), 10 AWG (Al), Wire Size - Minimum: 14 AWG, Temperature Rating: 40 C, Frequency: 50/60 Hz
Specifications
Specifications
Siemens - US2:Q215 - Product Categories
- Power Products
- Power Distribution and Protection
- Circuit Breakers and Accessories
- Miniature Circuit Breakers (MCB)
Siemens - US2:Q215 - Specifications
| Manufacturer Name | Siemens |
|---|---|
| Manufacturer Part Number | US2:Q215 |
| Actuator Style | Toggle |
| Item Description | Miniature Circuit Breaker, Toggle Actuator, 15 A, 10 kA Capacity, AFCI, Black |
| Amperage | 15 A |
| Breaking Capacity | 10 Ka |
| Circuit Breaker Properties | Afci |
| Color | Black |
| Depth | 3 In. |
| Frequency Rating | 50/60Hz |
| Frequency | 50/60 Hz |
| Height | 2 In. |
| Line Terminal | Lug |
| Load Terminal | Lug |
| Mounting Type | Din Rail |
| Number Of Poles | 2P |
| Product Type | Miniature Circuit Breaker |
| Special Rating | Ul |
| Temperature Rating | 40 C |
| Terminal Connection | Plug-In |
| Trip Curve | Type C |
| Trip Type | Thermal Magnetic |
| Voltage Ac Rating | 120/240 Vac |
| Width | 3 In. |
| Wire Size - Maximum | 12 Awg (Cu), 10 Awg (Al) |
| Wire Size - Minimum | 14 Awg |
