Brand: Siemon Company
|
SKU:
399225

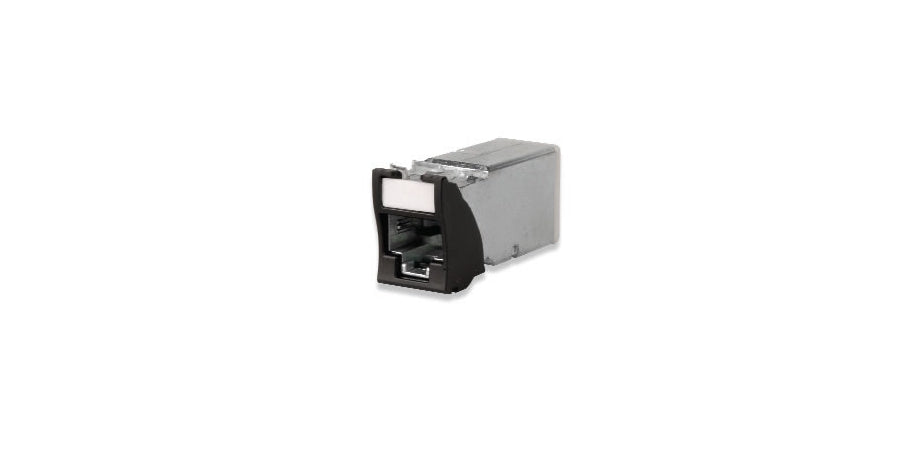

Siemon Company Z6A-S06 | Outlet Jack, Cat 6a, 110, 1 Port, T568A, T568B, Shielded, Blue
Regular price
$17.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemon Company Z6A-S06 | Outlet Jack, Cat 6a, 110, 1 Port, T568A, T...
Regular price
$17.26
Unit price
Brand: Siemon Company
|
SKU:
399225
Regular price
$17.26
Unit price
Shipping calculated at checkout.
Description
Description
Siemon Company Z6A-S06 | Outlet Jack, Cat 6a, 110, 1 Port, T568A; T568B, Shielded, Blue
The shielded z-max outlet offers best-in-class performance in every critical specification, exceeding all category 6a performance requirements, including alien crosstalk. Its innovative features not only speed and simplify termination, but remove installation variability for consistently high and repeatable performance ” every termination, every time.
Specifications
Specifications
Siemon Company - Z6A-S06 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Connectivity
- Copper Jacks
Siemon Company - Z6A-S06 - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | Z6A-S06 |
| Body Material | Copper Alloy |
| Item Description | Outlet Jack, Cat 6a, 110, 1 Port, T568A; T568B, Shielded, Blue |
| Cable Size | 26 To 22 Awg Sol And Str |
| Category | Cat 6A |
| Color | Blue |
| Conductor Size | 22 To 26 |
| Conductor Type | Solid; Stranded |
| Configuration Type | T568A/B |
| Configuration | 8-Wire Rj45 |
| Connection | Rj45 |
| Current Rating | 1.5 |
| Height | 0.832 In.(21.1Mm) |
| Housing Material | Zinc Die Cast |
| Insertion Cycle | 2500 |
| Installation Type | Front/Rear Faceplate |
| Length | 1.6 In.(41.2Mm) |
| Material | Die-Cast Zinc |
| Module Type | Modular Stp Jack |
| Mounting | Hybrid |
| Number Of Ports | 1 Port |
| Operating Temperature | 14° To 140°F (-10° To +60°C) |
| Outer Diameter | 0.354 In.(9Mm) |
| Product Type | Outlet Jack |
| Retention Force | 50 N( 11.24 Lb.F) |
| Shield Type | Shielded |
| Size | 0.354 In. Od Cable |
| Temperature Rating | -10 To +60 C |
| Termination | 110 |
| Voltage | 1000 Vac/Vdc |
| Width | 0.570 In.(14.5Mm) |
| Wiring Code | T568A/B |
| Wiring | T568A; T568B |
