Brand: Siemon Company
|
SKU:
399227

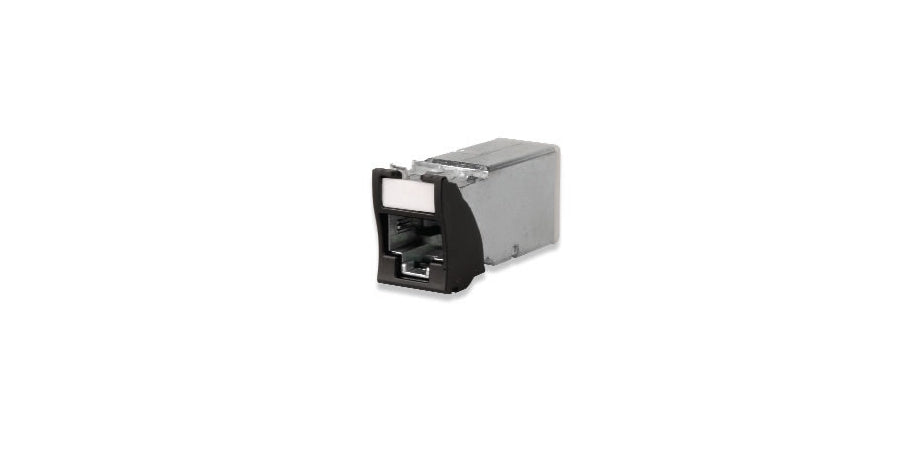

Siemon Company Z6A-S80 | Outlet Jack, Cat 6a, 110, 1 Port, Shielded, Copper Alloy, Hybrid Flat, Angled Mount, Light Ivory
Regular price
$19.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemon Company Z6A-S80 | Outlet Jack, Cat 6a, 110, 1 Port, Shielded...
Regular price
$19.85
Unit price
Brand: Siemon Company
|
SKU:
399227
Regular price
$19.85
Unit price
Shipping calculated at checkout.
Description
Description
Siemon Company Z6A-S80 | Outlet Jack, Cat 6a, 110, 1 Port, Shielded, Copper Alloy, Hybrid Flat; Angled Mount, Light Ivory
The shielded z-max outlet offers best-in-class performance in every critical specification, exceeding all category 6a performance requirements, including alien crosstalk. Its innovative features not only speed and simplify termination, but remove installation variability for consistently high and repeatable performance ” every termination, every time.
Specifications
Specifications
Siemon Company - Z6A-S80 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Connectivity
- Copper Jacks
Siemon Company - Z6A-S80 - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | Z6A-S80 |
| Body Material | Copper Alloy |
| Item Description | Outlet Jack, Cat 6a, 110, 1 Port, Shielded, Copper Alloy, Hybrid Flat; Angled Mount, Light Ivory |
| Category | Cat 6A |
| Color | Light Ivory |
| Conductor Size | 22 To 26 |
| Conductor Type | Solid; Stranded |
| Configuration | 8 Position Rj45; 6 Position Rj11 |
| Connection | Idc |
| Current Rating | 1.5 |
| Height | 0.832 In.(21.1Mm) |
| Housing Material | Zinc Die Cast |
| Insertion Cycle | 2500 |
| Length | 1.6 In.(41.2Mm) |
| Material | Die-Cast Zinc |
| Module Type | Jack |
| Mounting Type | Hybrid Flat; Angled Mount |
| Mounting | Hybrid Flat/Angled |
| Number Of Ports | 1 Port |
| Operating Temperature | 14° To 140°F (-10° To +60°C) |
| Outer Diameter | 0.354 In.(9Mm) |
| Product Type | Outlet Jack |
| Retention Force | 50 N( 11.24 Lb.F) |
| Shield Type | Shielded |
| Termination | 110 |
| Width | 0.570 In.(14.5Mm) |
| Wiring | T568A; T568B |
