Brand: Siemon Company
|
SKU:
399230
Siemon Company Z6A-SP | UPT Outlet, 1-Port, RJ45 Connector, Panel-Mount, Configuration, T568A/B
Regular price
$17.26
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Siemon Company Z6A-SP | UPT Outlet, 1-Port, RJ45 Connector, Panel-M...
Regular price
$17.26
Unit price
Brand: Siemon Company
|
SKU:
399230
Regular price
$17.26
Unit price
Description
Description

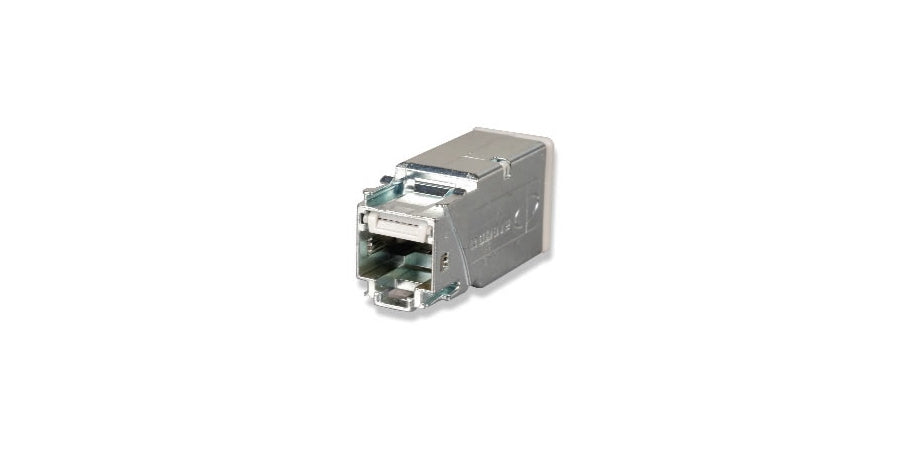

Siemon Company Z6A-SP | UPT Outlet, 1-Port, RJ45 Connector, Panel-Mount, Configuration, T568A/B
The shielded Z-MAX outlet offers best-in-class performance in every critical specification, exceeding all Cat 6A performance requirements, including alien crosstalk. Its innovative features not only speed and simplify termination, but remove installation variability for consistently high-and repeatable performance-every termination, every time.
Specifications
Specifications
Siemon Company - Z6A-SP - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Outlets and Jacks
Siemon Company - Z6A-SP - Specifications
| Manufacturer Name | Siemon Company |
|---|---|
| Manufacturer Part Number | Z6A-SP |
| Category | Category 6A |
| Item Description | UPT Outlet, 1-Port, RJ45 Connector, Panel-Mount, Configuration, T568A/B |
| Cable Size | 26 To 22 Awg Sol And Str |
| Category | 6A |
| Color | Black |
| Configuration Type | T568A/B |
| Configuration | 8-Position Rj45/6-Position Rj11 |
| Connection | Rj45 |
| Connector Type | Rj45 |
| Dimensions | Lxwxh: 1.6 X 0.57 X 0.832 In. |
| Height | 0.832 In. |
| Installation Type | Front/Rear Faceplate |
| Length | 1.6 In. |
| Material | Die-Cast Zinc |
| Module Type | Modular Utp Jack Shielded |
| Mounting | Panel-Mount |
| Number Of Ports | 1 Port |
| Product Type | Shielded Upt Outlet |
| Size | 0.354 In. Od Cable |
| Temperature Rating | -10 To +60 C |
| Voltage | 1000 Vac/Dc |
| Width | 0.57 In. |
| Wiring Code | T568A/B |
