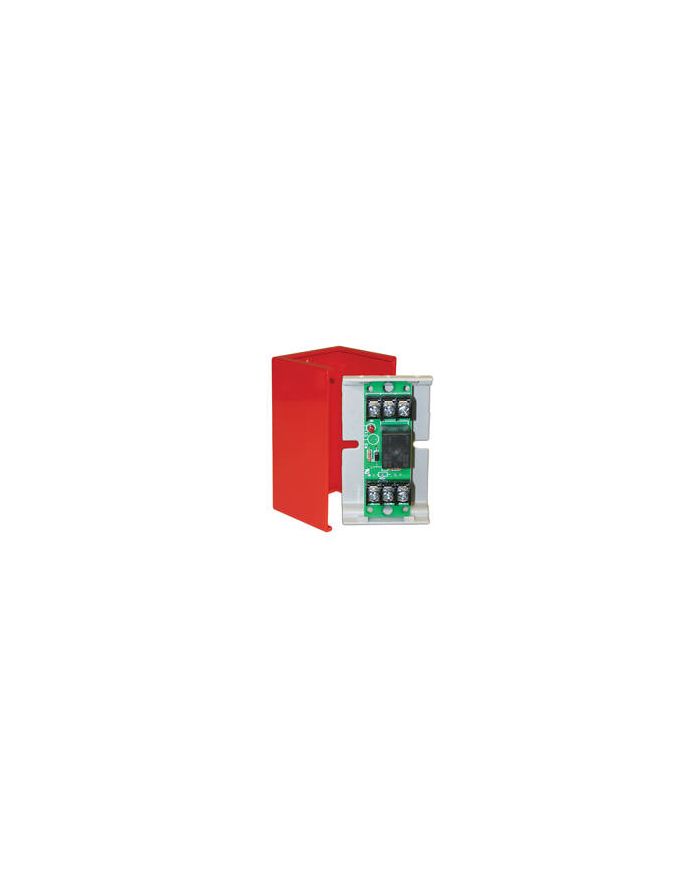

Space Age Electronics SSU-MR-701/C/R | MR-700 Series Control Relays
Description
Description
The MR-700 Series Relays offer SPDT 10 Amp contacts which may be operated by one of two input voltages; 12VDC or 24VDC.
Each relay position contains a red LED which when illuminated, indicates the coil is energized. This provides a time saving device when checking an installed system - no metering is required. Relays may be "snapped apart" from standard 2, 4, or 8 position modules, and are also available in the single circuit configuration. Relays are supplied with either mounting spacers, track mounting hardware or are mounted in enclosures.
These devices are ideal for applications where local contacts are required for control of electrical loads or general purpose switching. They are suitable for use with HVAC, temperature control, fire alarm, security, energy management and lighting control systems.
Space Age Electronics - SSU-MR-701/C/R - Features
- Relays may be energized from a voltage source of 12VDC or 24VDC
- Each relay position contains a red LED which illuminates when the coil is energized
- Single, dual or triple relay modules may be "snapped apart" from standard 2, 4 and 8-position masters
- DC input is polarized
- For continuous duty use
Specifications
Specifications
Space Age Electronics - SSU-MR-701/C/R - Specifications
| UNSPSC Code | 43211700 |
|---|
