Brand: Specified Technologies Sti
|
SKU:
280114
Specified Technologies STI EZD22 | Fire-Rated Pathway Device Kit, 10.5in. Length
Regular price
$124.34
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Specified Technologies STI EZD22 | Fire-Rated Pathway Device Kit, 1...
Regular price
$124.34
Unit price
Brand: Specified Technologies Sti
|
SKU:
280114
Regular price
$124.34
Unit price
Description
Description

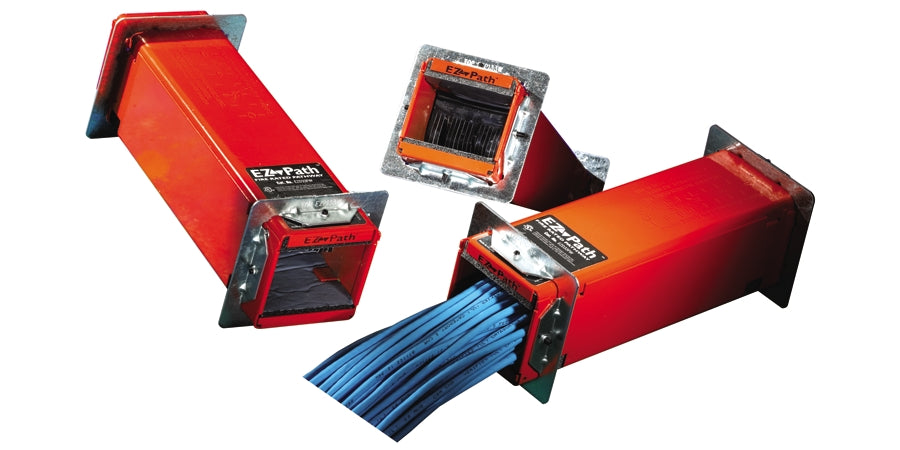

Specified Technologies STI EZD22 | Fire-Rated Pathway Device Kit, 10.5in. Length
The EZ Path Series 22 fire-rated pathway is a maintenance-free pathway solution for smaller cable bundles through fire-rated wall assemblies. The device is offered as a complete kit without the need for additional accessory products for installation.
Specified Technologies Sti - EZD22 - Features
- Self Sealing design providing exceptional fire and smoke leakage ratings
- Allows for Easy Moves, Adds, and Changes
- Designed for New and Existing construction
- Suited for round and rectangular openings
- Safety Orange for easy identification
Specifications
Specifications
Specified Technologies Sti - EZD22 - Product Categories
- Enclosures and Cable Routing
- Conduit and Cable Support
- Cable and Conduit Fasteners
- Firestop
Specified Technologies Sti - EZD22 - Specifications
| Manufacturer Name | Specified Technologies STI |
|---|---|
| Manufacturer Part Number | EZD22 |
| Item Description | Fire-Rated Pathway Device Kit, 10.5in. Length |
| Allowable Cable Fill | 0 to 100% |
| Application | For Cable and Cable Tray |
| Approval Listings | UL 1479, ASTM E814, CAN/ULC S115, FM Approved |
| Area | 1.25 Sq. in. |
| Cable Capacity | 5 |
| Color | Orange |
| Expansion Begins | 350 F |
| Fire Rating | 1; 2; 3; 4 hrs. |
| Height | 1.5 in. |
| Length | 10.5 in. |
| Material | Galvanized Steel |
| Product Type | Fire-Rated Pathway Device Kit |
| Rating | 1 to 2 Hours |
| Size | LxWxH: 10.5 x 1.5 x 1.5 in. |
| Special Rating | UL; FM; cULus |
| Type | Fire Rated Pathway Kit |
| Wall Thickness | 9 in. (229mm) |
| Width | 1.5 in. |
