Brand: Specified Technologies Sti
|
SKU:
541826

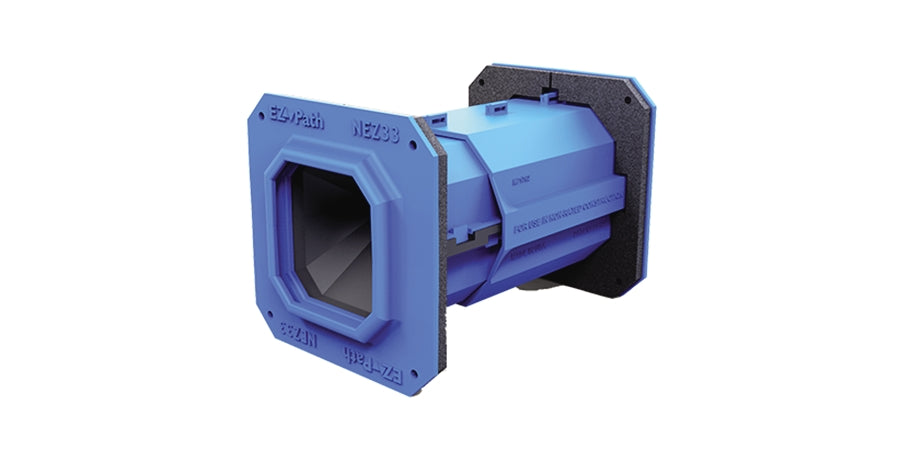

Specified Technologies STI NEZ33 | Smoke and Acoustical Pathway, Blue, Thermoplastic
Regular price
$88.59
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Specified Technologies STI NEZ33 | Smoke and Acoustical Pathway, Bl...
Regular price
$88.59
Unit price
Brand: Specified Technologies Sti
|
SKU:
541826
Regular price
$88.59
Unit price
Description
Description
Specified Technologies STI NEZ33 | Smoke and Acoustical Pathway, Blue, Thermoplastic
Designed for easy installation in non-rated floor, ceilings and walls, EZ Path Series 33NEZ smoke and acoustical pathway provides exceptional cable capacity with tested and approved cable capacities ranging from 0 up to 100% visual fill. A single unit installed in a wall exceeds the cable carrying capacity of a 4 in. sleeve utilizing typical putty firestop systems (35% cable loading).
Specified Technologies Sti - NEZ33 - Features
- Cable management by use, type and vendor
- Zero maintenance - easy moves, adds and changes
- Excellent acoustical performance; low smoke leakage ratings
- Easy to install - can be installed horizontally and vertically
- Clean, engineered appearance
- Pathways can be ganged for additional capacity
- Pathway adjusts to accommodate wall, floor and ceiling thicknesses between 4 in (102 mm) and 8 in (203 mm)
Specifications
Specifications
Specified Technologies Sti - NEZ33 - Product Categories
- Enclosures and Cable Routing
- Other Enclosures and Cable Routing
Specified Technologies Sti - NEZ33 - Specifications
| Manufacturer Name | Specified Technologies STI |
|---|---|
| Manufacturer Part Number | NEZ33 |
| Item Description | Smoke and Acoustical Pathway, Blue, Thermoplastic |
| Allowable Cable Fill | 0 to 100% |
| Application | Non-Rated Floors and Walls |
| Approval Listings | UL 1479 |
| Area | 6.7 sq. in. |
| Color | Blue |
| Height | 4-1/2 in. |
| Length | 5 in. |
| Material | Thermoplastic |
| Product Type | Smoke and Acoustical Pathway |
| Shape | Octagonal |
| Size | LxWxH: 4 x 4.5 x 4.5 in. (102 x 114 x 114mm) |
| TYPE | FIRE STOP |
| Type | Smoke and Acoustical Pathway |
| Width | 5 in. |
