System Sensor 4W-B - Photoelectric I3 Smoke Detector, 4-Wire

Installation ease. The i3 line redefines installation ease with its plug-in design. This allows an installer to pre-wire bases (included with heads). The large wire entry port and in-line terminals provide ample room for neatly routing the wiring insid e the base. The base accommodates a variety of back box mounting methods as well as direct mounting with drywall anchors. To complete the installation, i3 heads plug into the base with a simple Stop-Drop ’N Lock(TM) action.

Intelligence. i3 detectors offer a number of intelligent features to simplify testing and maintenance. Drift compensation and smoothing algorithms are standard with the i3 line to minimize nuisance alarms. 2-wire i3 detectors can generate a remote LEDindicated maintenance signa l when connected to the 2W-MOD2 loop test/maintenance module or a panel equipped with the i3 protocol. The SENS-RDR, a wireless device, displays the sensitivityof i3 detectors in terms of percent-per-foot obscuration.

Instant inspection. The i3 series provides wide-angle red and green LED indicators for instant inspection of the detector’s condition: normal standby, out-of-sensitivity, alarm, or freeze trouble. When connected to the 2W-MOD2 loop test/maintenance module or a panel with the i3 proto col, the EZ Walk loop test feature is available on 2-wire i3 detectors. This feature verifies the initiating loop wiring by providing LED status indication at each detector.

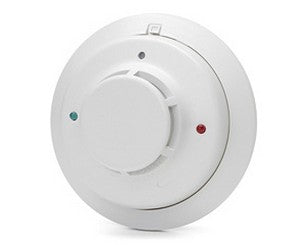

System Sensor 4WB The 4W-B is a 4-wire, photoelectric i3 smoke detector. System Sensor i3 series smoke detectors represent significant advancement in conventional detection. The i3 family is founded on three principles: installation ease, intelligence, and instant inspection.

System Sensor - 4W-B - Features

• Plug-in detector line, mounting base included
• Large wire entry port
• In-line terminals with SEMS screws
• Mounts to octagonal and single-gang back boxes, 4-square back boxes, or direct to ceiling
• Stop-Drop ’N Lock attachment to base
• Removable detector er and chamber
• Built-in remote maintenance signaling
• Drift compensation and smoothing algorithms
• Simplified sensitivity measurement
• Wide-angle, dual-color LED indication
• Loop testing via EZ Walk feature
• Built-in test switch
• Technical Specifications:
• Operating Voltage: 12/24V non-polarized, 8.5-35V
• Maximum Ripple Voltage: 30 percent peak of applied voltage
• Standby Current: 4-wire 50ma max.
• Maximum Alarm Current: 20mA at 12V, 23mA at 24V
• Alarm Contact Rating: 0.5A at 30V AC/DC
• Dimensions (including base): 5.3" (127mm) diameter, 2" (51mm) height
• Weight: 6.3oz (178g)
• Operating Temperature Range: 32F-100F (0C -37.8C)
• Operating Humidity Range: 0 to 95 percent non-condensing
• Thermal Sensor: 135F (57.2C) fixed
• Sensitivity: 2.5 percent nominal
• Input Terminals: 14 to 22 AWG
