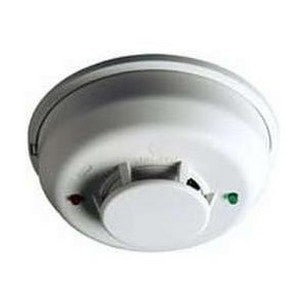

System Sensor 4WTAR-B | i3 Series Detector, 4-wire, 12/24 V DC, Thermal, Sounder, Relay with Base
Installation ease: Throughout the i3 series, installation is simple with its installer-friendly base and plug-in design. The base accommodates a broad range of back box and direct mounting options and provides ample space for pre-wiring the device. To complete the installation, the i3 detector plugs into its base with a simple Stop-Drop ’N Lock action.
Intelligence: To reduce the likelihood of nuisance alarms, all i3 detectors are equipped with both drift compensation and smoothing algorithms. These capabilities minimize both short- and long-term causes of nuisance alarms, such as RF interference and dust accumulation. When connected to the 2W-MOD2 loop test/ maintenance module or an i3 Ready(TM) panel, 2 wire i3 detectors can generate a remote maintenance signal when in a maintenance or freeze trouble condition. To measure the sensitivity of any i3 detector, the SENS-RDR displays the reading, in terms of percent-per-foot obscuration, within seconds.
Instant inspection: i3 has red and green LEDs to simplify local status indication during power-up, standby, alarm, maintenance, and freeze trouble conditions. When in alarm, i3 sounder models generate an 85 dB temporal tone. If connected to the RRS-MOD reversing relay/synchronization module , all i3 sounders on the loop will activate when one detector is in alarm. The RRS-MOD also synchronizes i3 sounder output to ensure a clear audible signal.
Should the application call for differentiating between a local and a general alarm, the i3 line offers an isolated thermal model, which initiates a local alarm when smoke is detected, and a general alarm when the thermal sensor is activated.
System Sensor i3 sounder and relay smoke detectors apply the guiding principles of installation ease, intelligence, and instant inspection in a series of specialty conventional devices.
To reduce the likelihood of nuisance alarms, all i3 detectors are equipped with both drift compensation and smoothing algorithms. These capabilities minimize both short- and long-term causes of nuisance alarms, such as RF interference and dust accumulation. When connected to the 2W-MOD2 loop test/ maintenance module or an i3 Ready panel, 2-wire i3 detectors can generate a remote maintenance signal when in a maintenance or freeze trouble condition. To measure the sensitivity of any i3 detector, the SENS-RDR displays the reading, in terms of percent-per-foot obscuration, within seconds.
i3 has red and green LEDs to simplify local status indication during power-up, standby, alarm, maintenance, and freeze trouble conditions. When in alarm, i3 sounder models generate an 85 dB temporal tone. If connected to the RRS-MOD reversing relay/synchronization module, all i3 sounders on the loop will activate when one detector is in alarm. The RRS-MOD also synchronizes i3 sounder output to ensure a clear audible signal
System Sensor - 4WTAR-B - Features
- 85 dB sounder
- Form C relay
- Isolated thermal sensor
- Plug-in design (base included)
- In-line terminals
- Flexible mounting options
- Stop-Drop ’N Lock(TM) attachment to the base
- Removable cover and chamber
- Remote maintenance signaling
- Drift compensatiomoothing algorithms
- Simplified sensitivity measurement
- Dual-color LEDs
- Red and green LEDs to simplify local status indication during power-up, standby, alarm, maintenance, and freeze trouble conditions
- Installer-friendly base and plug-in design
- Form C relay
- Plug-in design (base included)
- In-line terminals
- Flexible mounting options
- Stop-Drop ’N Lock attachment to the base
- Removable cover and chamber
- Remote maintenance signaling
- Drift compensation and smoothing algorithms
- General Information
- Name: System Sensor 4WTAR-B Photoelectric i3 Series Smoke Detector, 4-Wire, Thermal Sensor, Built-In Sounder, Form C Relay, White, Honeywell International, Inc, System Sensor
- Category: System Sensor, Fire, Intrusion, Fire Detection Devices, Life Safety Devices, Smoke & Heat Detectors, Smoke & Heat Detectors
- UPC Code: 783863020001
- Country of Origin: Mexico. Country of origin is subject to change.
System Sensor - 4WTAR-B - Product Categories
- Security
- Fire Alarm Systems
- Smoke and Heat Detection
System Sensor - 4WTAR-B - Specifications
| UNSPSC Code | 46171600 |
| Brand Name | System Sensor |
| Connectivity Technology | Wired |
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | 4WTAR-B |
| Product Model | 4WTAR-B |
| Product Name | i3 4WTAR-B Smoke Detector |
| Product Series | i3 |
| Product Type | Smoke Detector |
| Weight (Approximate) (g) | 201.282 |
System Sensor - 4WTAR-B - Physical Characteristics
| Color | White |
| Diameter (mm) | 134 |
| Form Factor | Ceiling Mount |
| Height | 2" |
| Technical Information | - |
| Detectable Medium | Fire |
| Sensing Technology | Photoelectric |
| Sensor Type | Photoelectric |
